| Â | Â | Â |
 Diameter |
 Thickness |
 Hole Diameter |
 Profile / Angle |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

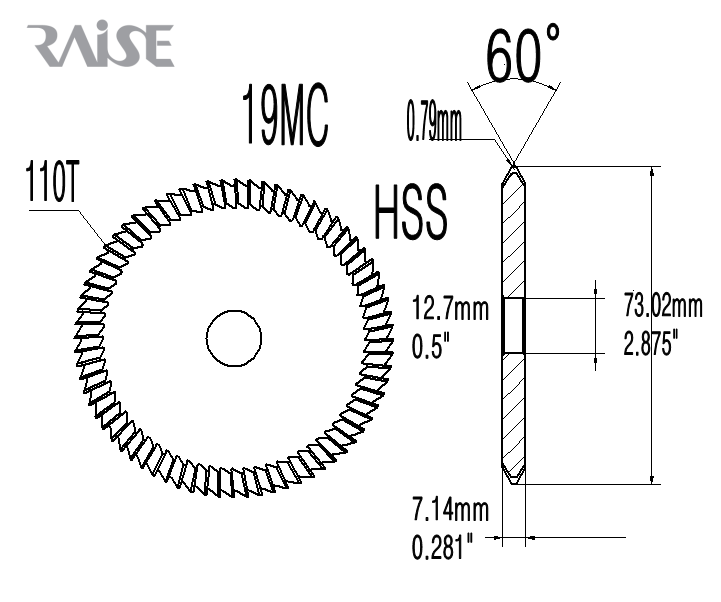

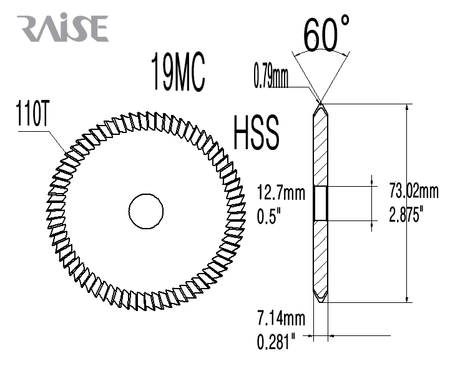

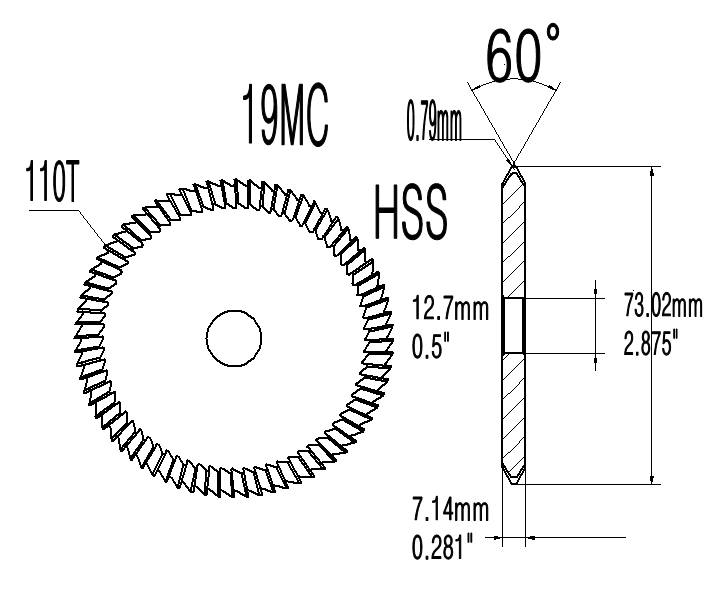

| Item No. | Type | Material | Inch | mm | Inch | mm | Inch | mm | A° | B° | F In. | mm |
| Â 19MC | Â Milling | Â H.S.S. | Â 2.875 | Â 73.02 | Â .28 | Â 7.11 | Â .5 | Â 12.78 | Â 30 | Â 30 | Â .031R | Â .787 |
RAISE® High Quality Cutters
This cutter can be used on the following machines:
- Ilco 2183DM, 2183HM, 006, 010
- Keil 1, 1-1/2, 10
