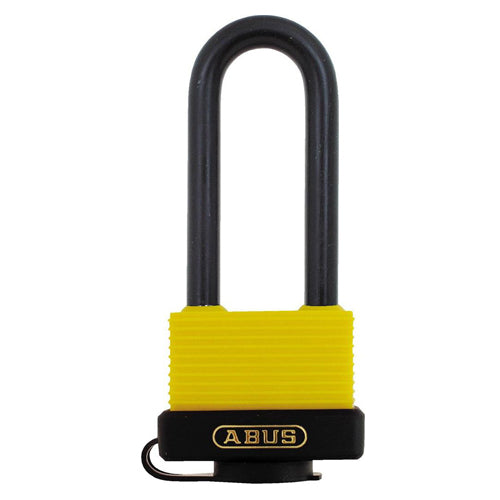

Weatherized Brass 70/45HB63
- Body made of solid brass
- Shackle made of hardened steel, stainless steel shackle (IB) also available
- Sealed lock body with cover seal and drainage channels to protect the cylinder against water and dirt
- Inner components made of non-corrosive materials
- Shock-absorbing vinyl casing
- Precision pin tumbler
Variants:
- Sizes: 1 15/16", 2 11/64"
- Stainless Steel Shackle (IB): 1 15/16", 2 11/64"
- Additional Shackle Lengths: 2 1/2", 3 9/64"

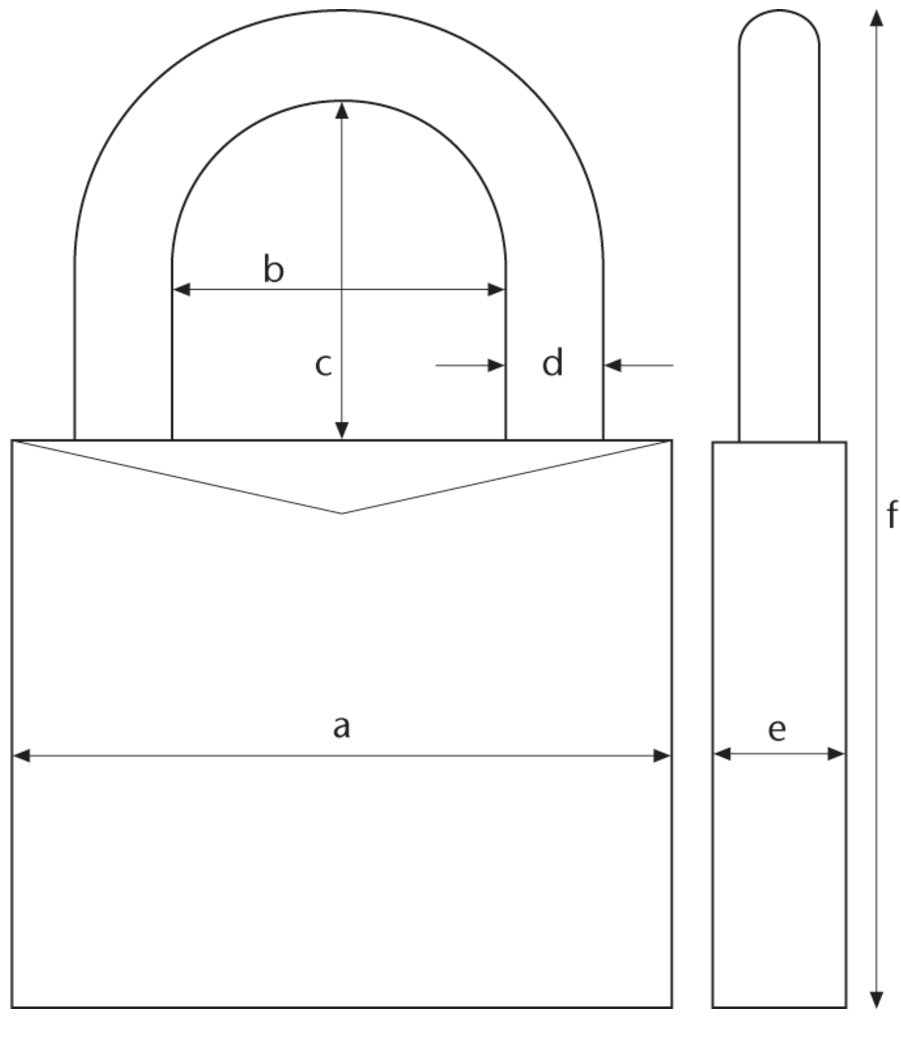

Technical data:
| Width a [inch]: | 1 15/16 |
| Horizontal clearance b [inch]: | 51/64 |
| Vertical clearance c [inch]: | 2 1/2 |
| Shackle diameter d [inch]: | 5/16 |
| Depth e [inch]: | 1 7/64 |
| Height f [inch]: | 4 13/32 |
| Level: | 5 |
| Weight [lbs]: | 0.46 |
Variants:
 Width a [inch]: 1 15/16 Level: 5 |
|
 Width a [inch]: 1 15/16 Level: 5 |
 Width a [inch]: 1 5/32 Level: 6 |
