 Diameter |
 Thickness |
 Hole Diameter |
 Profile / Angle |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

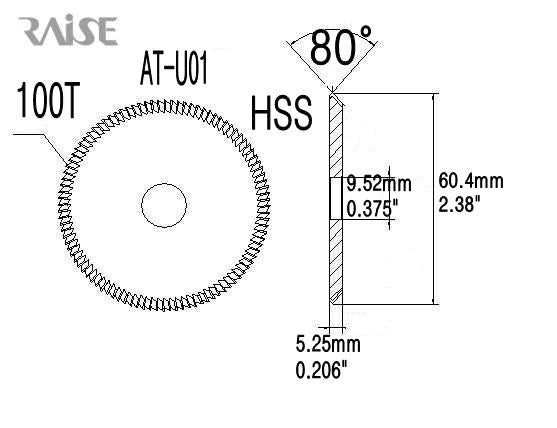

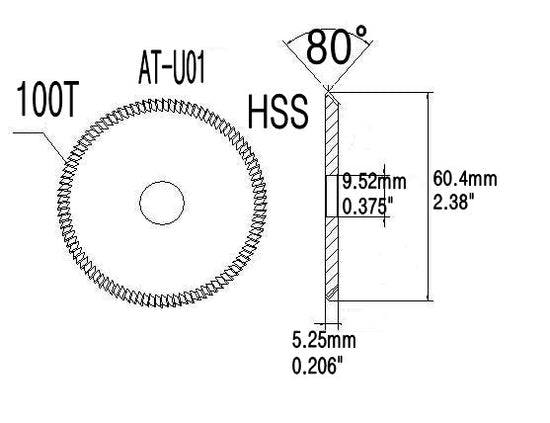

| Item No. | Type | Material | Inch | mm | Inch | mm | Inch | mm | A° | B° | F In. | mm |
| AT-U01 | Milling | Carbide | 2.38 | 60.4 | .207 | 5.25 | .375 | 9.52 | 0 | 80 | .004R | .10 |

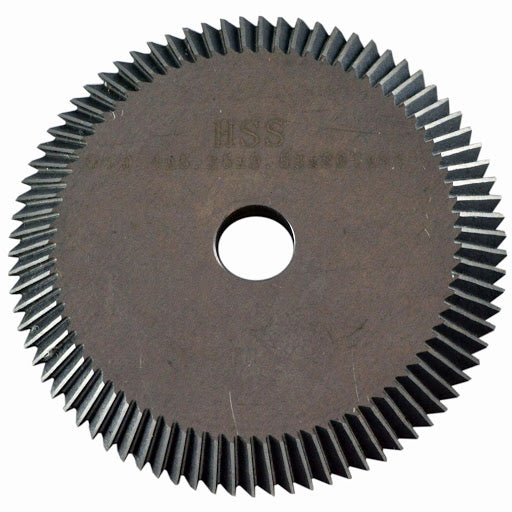

RAISE® High Quality Cutters
This cutter can be used on the following machines:
- Ilco EZ-Code
- UNOCODE
- LEONARDO
- ULTERCODE
- UNOCODE 299,399
This cutter is able to substitute for the following cutters:
- D716549ZB
- AT-U01
- BC0004XXXX
