| Â | Â | Â |
 Diameter |
 Thickness |
 Hole Diameter |
 Profile / Angle |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

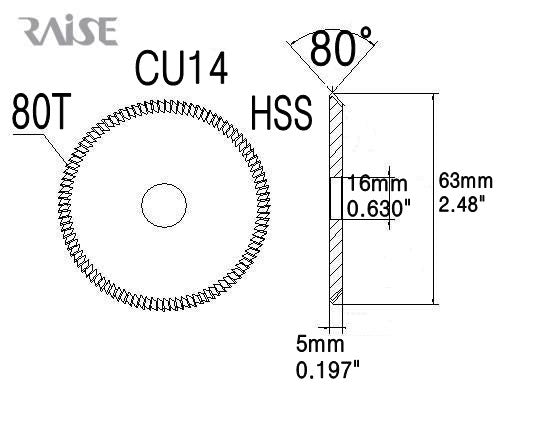

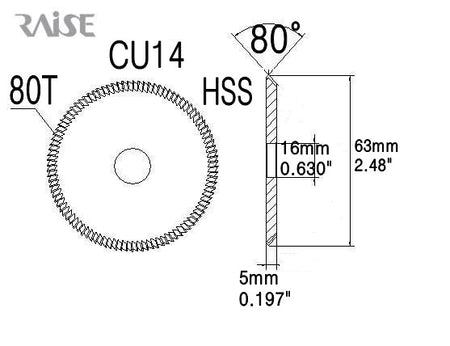

| Item No. | Type | Material | Inch | mm | Inch | mm | Inch | mm | A° | B° | F In. | mm |
| Â CU14 | Â Milling | Â Cobalt | Â 2.48 | Â 63 | Â .197 | Â 5 | Â .63 | Â 15 | Â 42 | Â 42 | Â | Â |

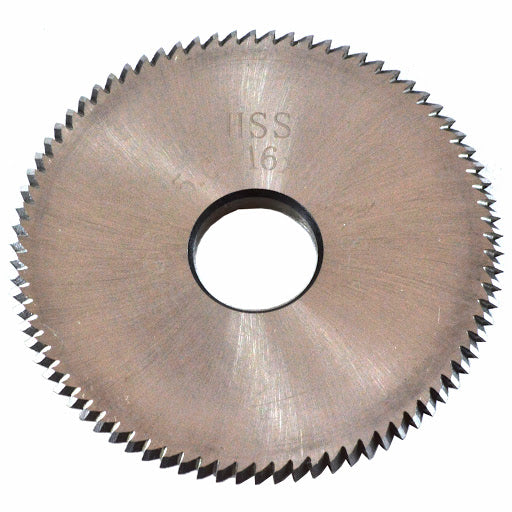

RAISE® High Quality Cutters
This cutter can be used on the following machines:
- Ilco KD14
This cutter is able to substitute for the following cutters:
- CU14 / FP12
