| Â | Â | Â |
 Diameter |
 Thickness |
 Hole Diameter |
 Profile / Angle |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

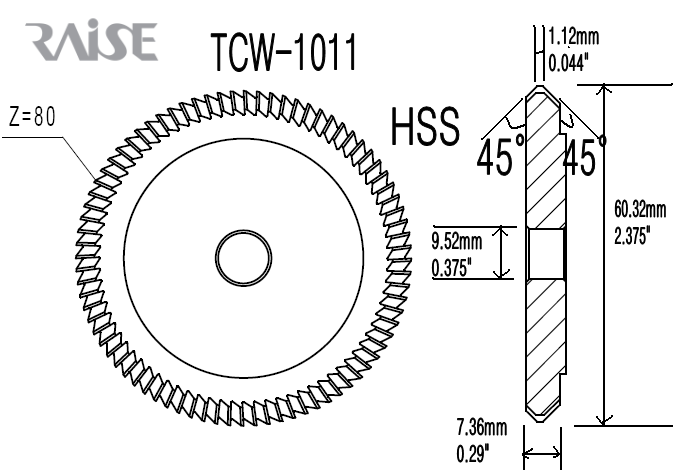

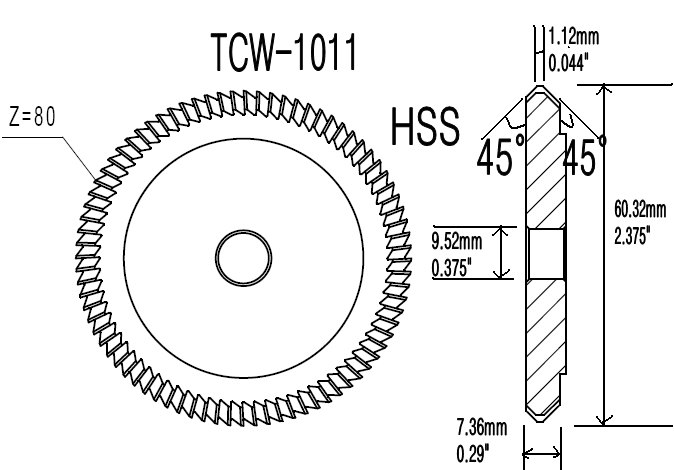

| Item No. | Type | Material | Inch | mm | Inch | mm | Inch | mm | A° | B° | F In. | mm |
| Â TCW-1011 | Â Milling | Â H.S.S. | Â 2.375 | Â 60.32 | Â .25 | Â 6.35 | Â .375 | Â 9.52 | Â 45 | Â 45 | Â .044F | Â 1.12 |
RAISE® High Quality Cutters
This cutter can be used on the following machines:
- Ilco Universal II
- HPC 1200CM
- Lagard LG1011
- Tiger Shark
- Original Blitz
- Extreme Blitz
