| Â | Â | Â |
 Diameter |
 Thickness |
 Hole Diameter |
 Profile / Angle |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

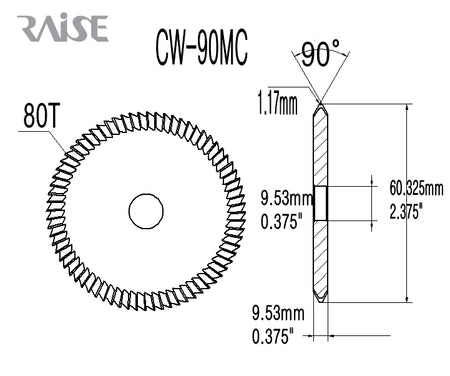

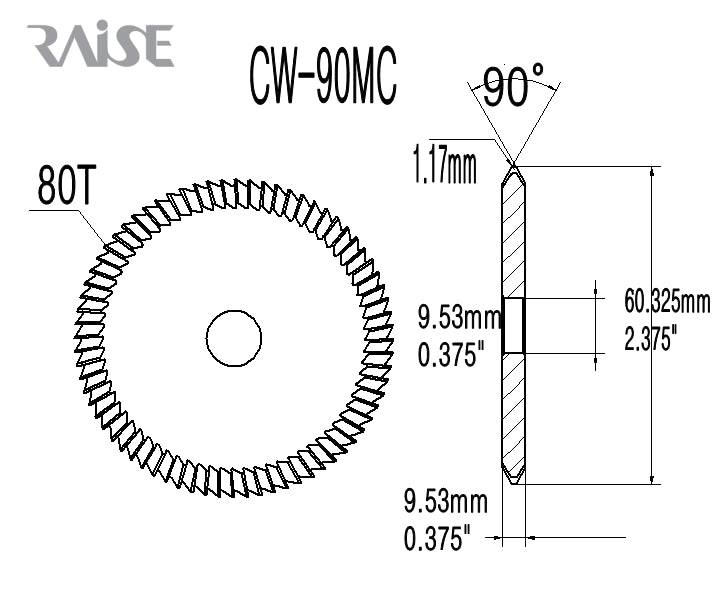

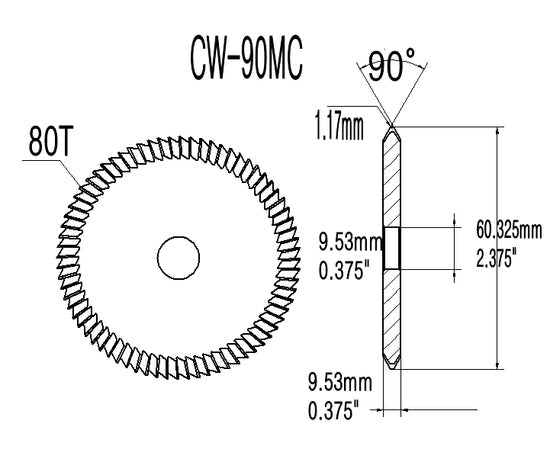

| Item No. | Type | Material | Inch | mm | Inch | mm | Inch | mm | A° | B° | F In. | mm |

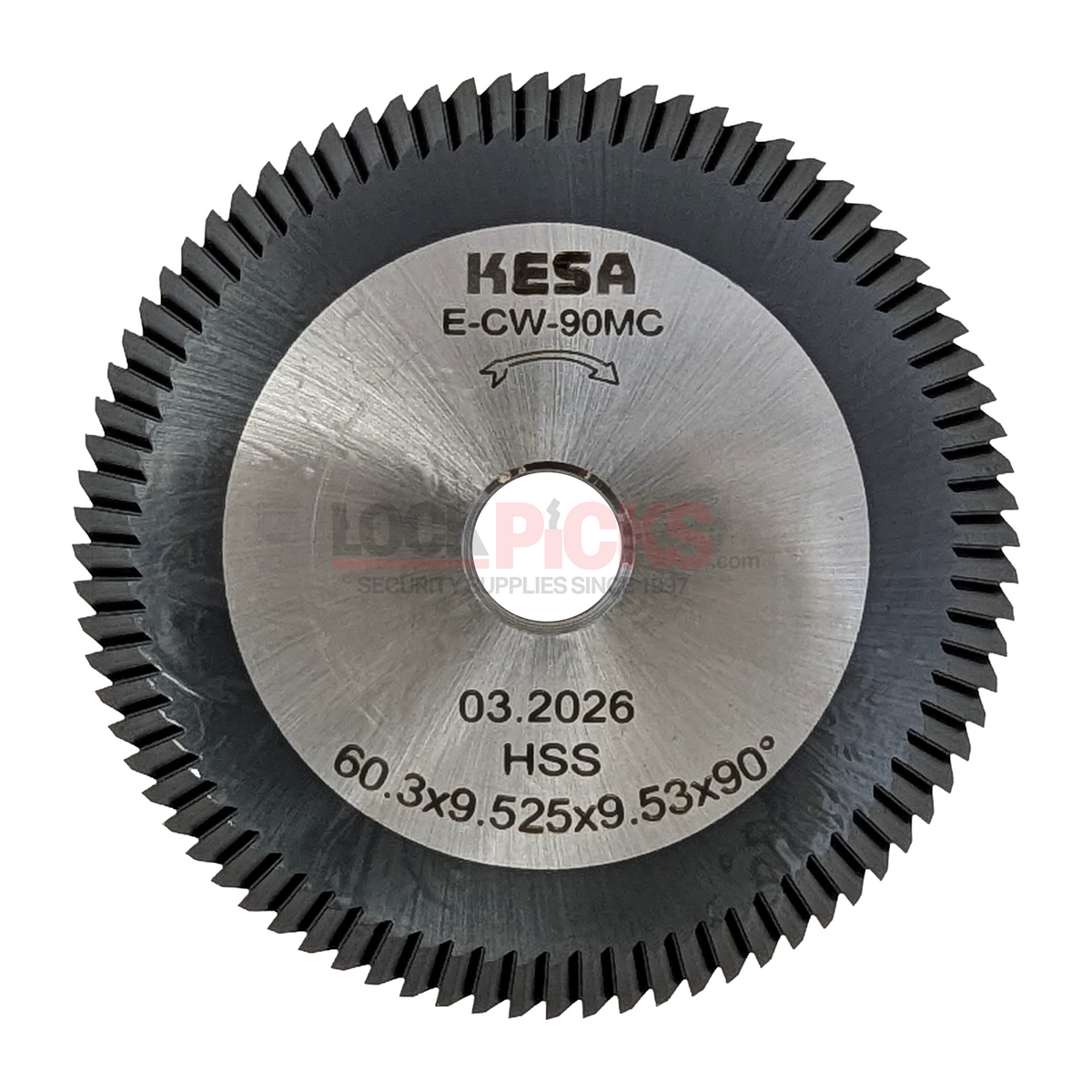

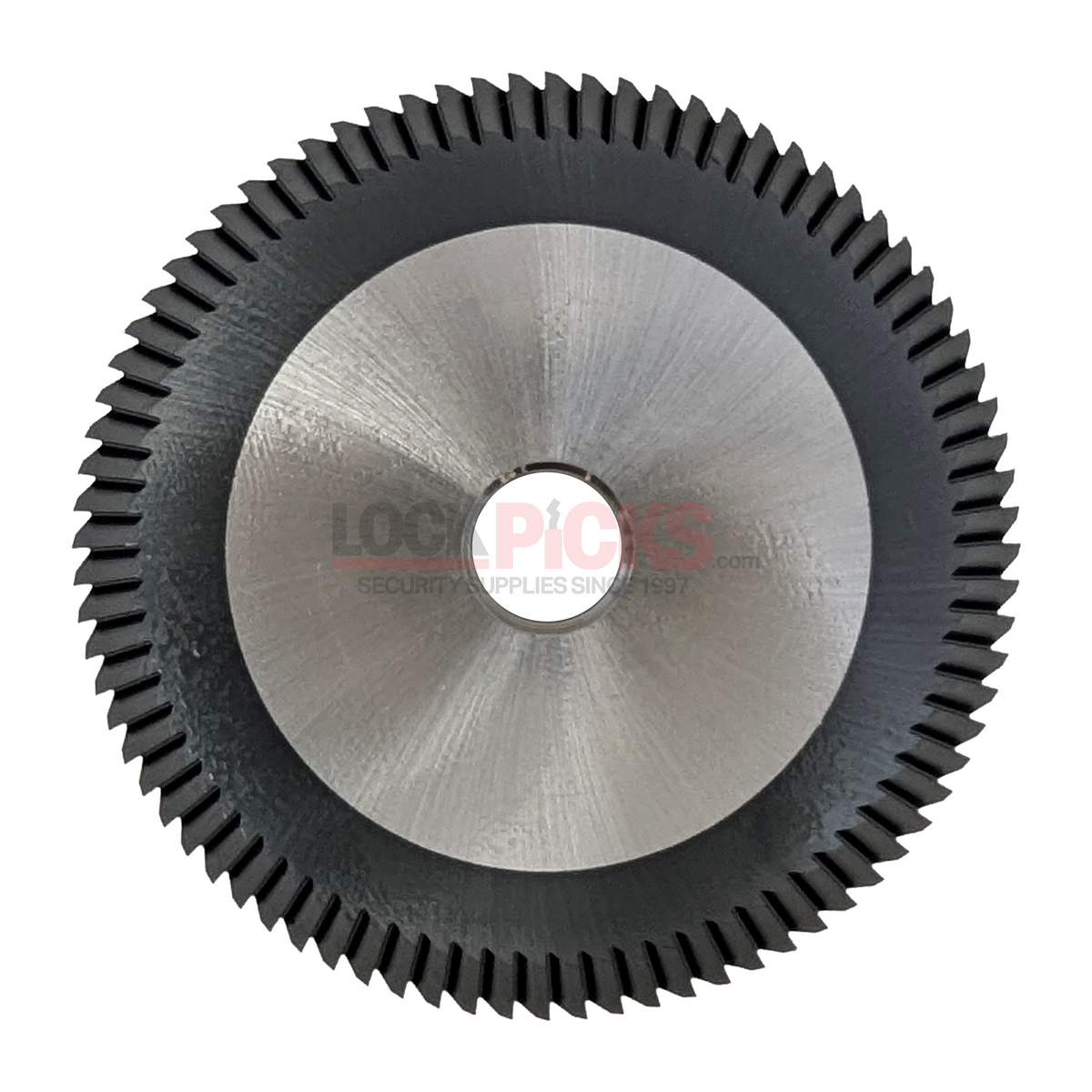

| Â TCW-90MC | Â Milling | Â H.S.S. | 2.375Â | Â 60.32 | Â .375 | Â 9.52 | .375Â | Â 9.52 | Â 45 | Â 45 | Â .052F | Â 1.32 |
RAISE® High Quality Cutters
This cutter can be used on the following machines:
- Ilco Universal II
- HPC 1200CM
- Lagard LG1011
