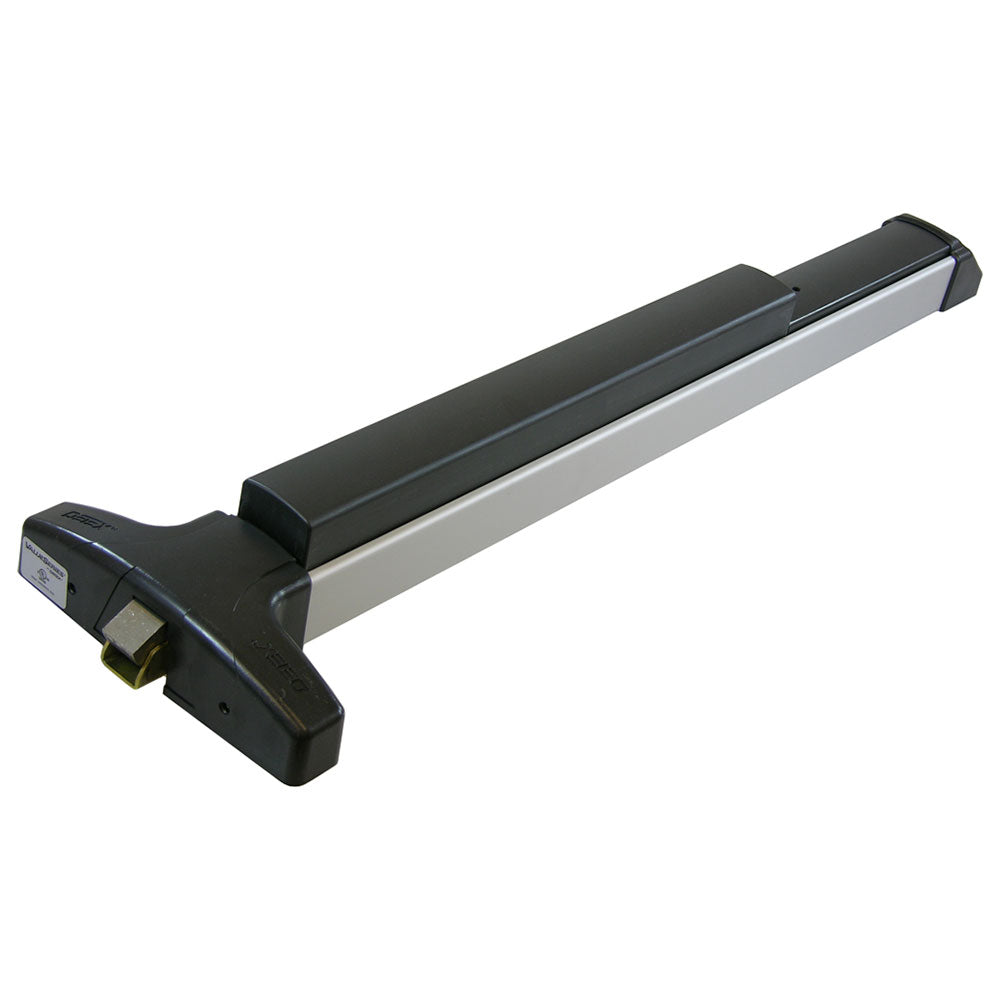

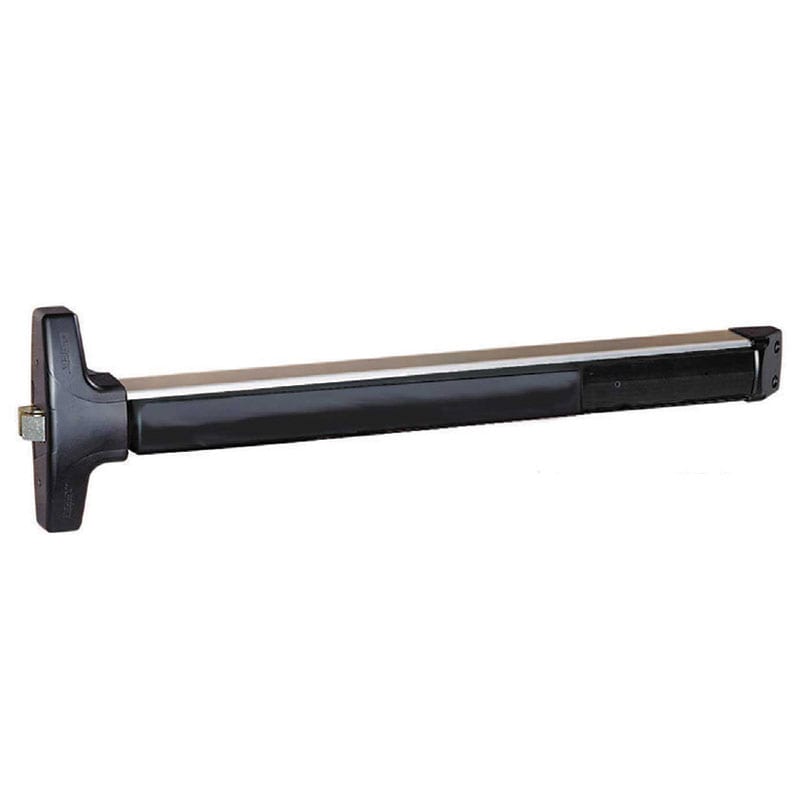

The Detex V40 Series 48" Rim Exit Device in Satin Aluminum (US28) offers secure and durable panic and fire exit functionality at a competitive price point. Built for high-traffic commercial and institutional environments, this heavy-duty exit device features Detex’s patented mounting plate and strike locator system, enabling fast, accurate installation without the need for templates.
Engineered with a 3/4" stainless steel deadlocking Pullman latch, ribbed aluminum rail, and high-impact ABS end caps, the V40 is designed to withstand over 1,400 lbs. of static pull force. Its non-handed, field-sizeable design makes it suitable for a wide variety of doors, including narrow stile applications with the V40xNS model. The modular design allows for quick rekeying or trim changes without removing the device from the door.
Whether you're securing wood, metal, fiberglass, or aluminum doors, the V40 provides a high-strength, low-maintenance solution trusted by security professionals across industries.
Specifications
| Attribute | Details |
|---|---|
| Access Type | Panic Exit |
| Certifications | ANSI A156.3, UL Listed |
| Device Width | 48" (Field Sizeable) |
| Door Application | Single or Double Doors with Mullion |
| Door Type | Wood, Hollow Metal, Fiberglass, Aluminum |
| Finish Code | 628 |
| Finish Color | Satin Aluminum |
| Function | Exit Only |
| Grade | Grade 1 |
| Handing | Non-Handed |
| Mounting Plate System | Patented Mounting Plate & Strike Locator |
| Series | V40 Series |
| Strike Type | Surface Strike (Standard 99) |
| Stile Compatibility | Standard: 3-1/2" (Single), 4" (Double); Narrow Stile: 2" (V40xNS Model) |
| Latch Type | 3/4" Deadlocking Pullman-Type Stainless Steel Latch |
| Weatherproof | No |
