This cutter is made Carbide Material!
 Diameter |
 Thickness |
 Hole Diameter |
 Profile / Angle |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

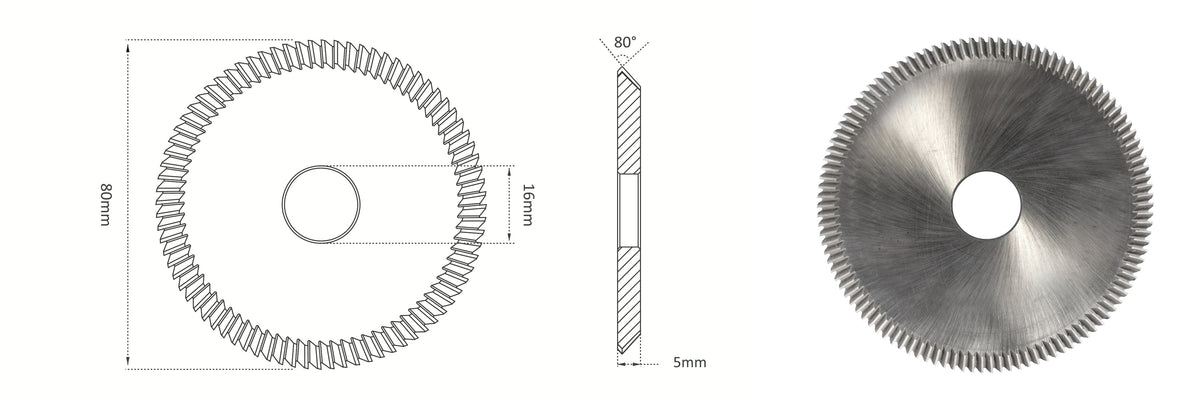

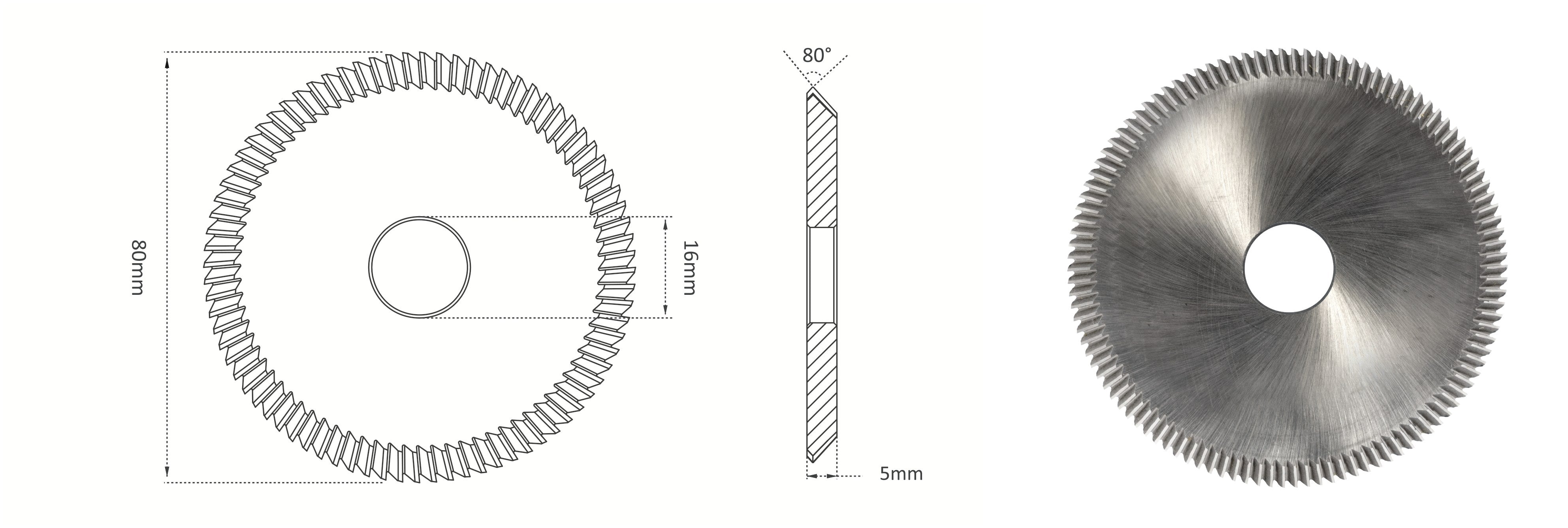

| Item No. | Type | Material | Inch | mm | Inch | mm | Inch | mm | A° | B° | F In. | mm |
| CU50C | Milling | Carbide | 3.15 | 80 | .197 | 5 | .63 | 16 | 40 | 40 | ||
RAISE® High Quality Cutters
This cutter can be used on the following machines:
- Ilco KD40, KD50, KD50A, KD50C, KD71, KD71A
- Silca BRAVO II, BRAVO III, BRAVO III
- Rytan RY45, RY66, RY100, RY256
This cutter is able to substitute for the following cutters:
- CU50A,
- D717898ZB
- D704861ZB
- P01W
- PO1W
- P32
- HPP032
- WPP032
- F01
- P-2028
It may require the machine to be set up for a carbide cutter.
