Complete Pocket Size Decoder Kit
HKD-75

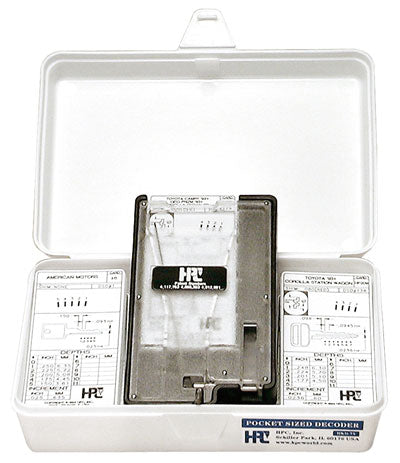

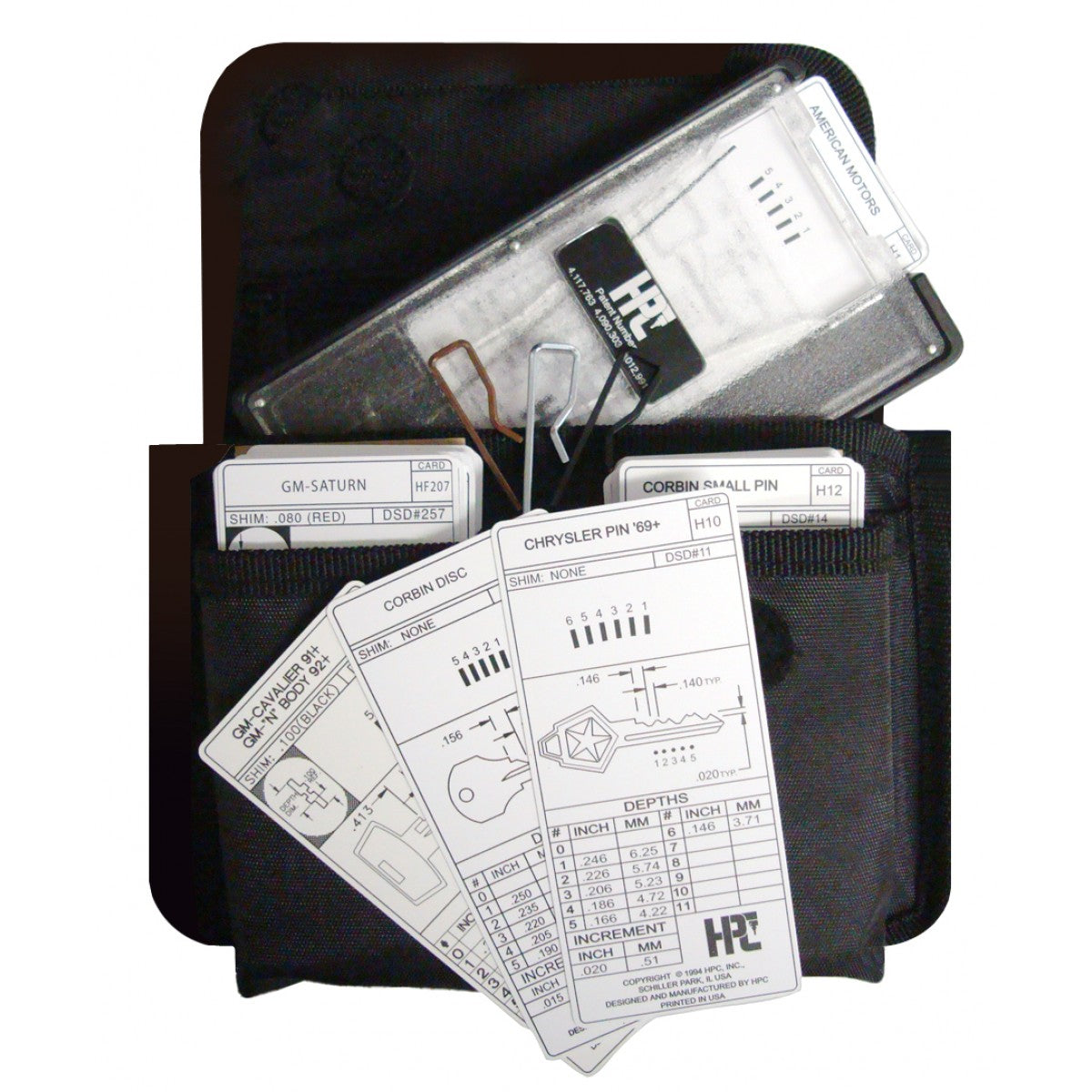

The Pocket Size Decoder Kit determines the original factory depths of most popular domestic pin and disc tumbler cylinder and automotive keys. It is ideally suited for giving the correct bottom pin size when re-keying new or worn cylinders. It is also an effective timesaver when used along with precision color pin assortments or when using original pins. Simply insert the correct information card into the top slot of the decoder. Lowering the depth pin into each cut, from bow to tip, will indicate the correct depths in the window at the top. The pivoting depth pin allows for easy decoding of Medeco® angles. Each of the 2" x 4" (5 x 10cm) information cards also lists the manufacturers depth and space specifications.HKD-75 comes complete with a handy soft shell carrying case, 3 shims, and 111 information cards.
Cards Included
H1 American Motors (D,E,K,L)
H10 Chrysler Pin (1969+)
H11 Corbin Disc
H12 Corbin Small Pin
H16 Dexter Large Pin (1969+)
H2 Arrow New Large Pin
H20 Eagle Small Pin Long Space
H21 Eagle Large Pin
H24 Ford 5-Pin Double-Sided (1965+)
H25 General Motors Wafer (1936+)
H26 Hudson Small Pin
H27 Small Pin
H28 Ilco/Lockwood Large Standard Pin
H29 Illinois/Timberline Single-Sided Disc
H3 Arrow (A2)/Best/Eagle/Falcon
H30 American Small Pin
H31 Kwikset Large Pin
H31 XKwikset Titan
H34 Master Small Pin (7K)
H35 Master Standard Large Pin (1K)
H36 Medeco Standard (.030" inc.)
H37 National Cabinet Single-Sided Disc
H39 National Cabinet Small Pin Standard
H4 Briggs & Stratton Disc (Gas Cap)
H40 National Large Pin
H41 Russwin Large Pin (not system 70)
H44 Sargent Large Pin
H45 Schlage Large Pin
H46 Segal Large Pin
H48 Taylor Small Pin
H49 Taylor Large Pin
H5 Chicago/Fort Single-Sided Disc
H50 Weiser-Falcon
H5 Welch Large Pin
H52 Weslock Large Pin
H53 XL Lock Letterbox (X, K Series)
H55 Yale Disc
H56 Yale Small Pin
H57 Yale Large Pin
H6 Chicago Pin
HEX1 ASSA Twin 6000
HF100 Chrysler/Renault/Peugeot (Primary) (B,G,H,J,E) (1982-1985)
HF101 Chrysler/Renault (Secondary) (B,G,C,D,E)
HF102 Chrysler/Renault (Secondary) non-letter (1981+)
HF11 Ford Capri/Fiesta
HF114 Chrysler/Renault/Peugeot (Primary) (M,N,P,R,S,E)
HF118 Chrysler/Renault/Peugeot (Secondary) (M,N,P,R,S)
HF119 Eagle Premier Ignition (1988+)
HF13 Merkur (German Ford) (1985-1989)
HF201 Hyundai-U.S. (X Series) (1986+)
HF202 Yugo Secondary (Z)
HF203 Yugo Secondary (G)
HF204 GM-Allante (1987+)
HF205 GM-Pontiac LeMans (S) (1988+)
HF206 GM-Cavalier (1991+)/"N" Body (1992+)
HF207 GM-Saturn
HF208 Corolla Sedan/Geo Prizm/Toyota Camry
HF209 Toyota Corolla Wagon (1993+)
HF211 Hyundai Sonata
HF215 GM (1994+) Modular Ignition Program (Double-Sided)
HF34 BMW/Mercedes (11-Wafer) (1975+)
HF36 Porsche (911/912)
HF4 Audi/Porsche/VW
HF40 Datsun/Mazda/Triumph/Jaguar
HF43 British Autos & Cycles
HF48 Ford Cargo Truck (1986+)/Sterling
HF49 Jaguar XJ6 (10-Disc) (1988+)
HF51 MG/Volvo Primary & Secondary
HF52 Volvo 240/740/760
HF56 Saab (1974+)
HF60 Datsun/Subaru/Nissan (F,M,N,W)
HF63 Ford/Mazda Truck
HF64 Mazda (1970-1980)
HF65 Ford/Mazda/Mercury
HF67 Datsun/Subaru/GMC/Nissan (8-Disc)
HF68 Ford/Mazda 10-Cut
HF73 Acura (1986+)/Honda (1982+)
HF74 Acura (1990+)/Honda (1988+)
HF8 Volvo/VW (Gas Cap)
HF80 Hyundai/Toyota/Isuzu/Mitsubishi (D,K,R,S,F,P,C,H,U,Z)
HF81 Chevy Luv (B)/Toyota (A,M,N,T,) (1969+)
HF82 Toyota (unlettered) (1969+)
HF85 GM-Chevy Spectrum/Isuzu/Mitsubishi (A,H)
HF86 GM-Chevy Nova Primary (R)
HF86 SGM-Chevy Nova Secondary (S)
HF87 Toyota 8-Disc
HF88 Daihatsu / Toyota / Geo / Isuzu / Mitsubishi / Suzuki
HF89 Geo Tracker/Suzuki Sidekick/Isuzu
HF90 Fiat Ignition
HF91 Fiat Secondary
HF94 Fiat Strada (1979-1980)
HF96 Fiat Strada (1981+)
HF99 Iveco Truck (P,Z)
HMC37 Honda Cycles (1983+)
HMC50 Kawasaki Cycles (1979+)
HMC71 Suzuki Cycles (1988+)
HMC80 Yamaha Cycles (1981+)
HPKS1 Kaba Peaks (140) (6-Pin) (A2)
HPKS2 Kaba Peaks (150) (6- & 7-Pin) (A2)
HSP3 Medeco Biaxial
HX1 Corbin/Emhart/Russwin (system 70) High Security Angle Cut
HX14 Chicago/Steelcase Small Pin
HX3 Medeco Small Pin (thin head)
HX32 Hudson Disc
HX5 Corbin (system 70) (X-class/27-99) (1977+)
HX56 Ford 10-Cut
HX58 LSDA Large Pin
HX59 Chrysler Double-Sided (1989-1992)
HX60 Chrysler Double-Sided (1993+)
HX6A Corbin/Emhart/Russwin (system 70) (Z,D,H) (1993+)
HX7 Russwin (system 70) (K,N) (1977+)
