Ilco is pleased to introduce the Futura Pro One for Laser and Dimple keys.

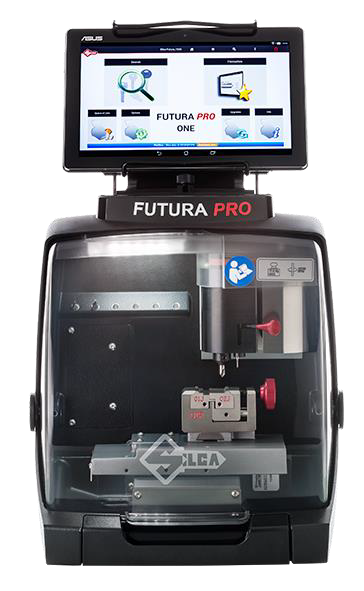

Built on the successful Futura Pro platform, the Futura Pro One key machine is designed and engineered with just one cutting station to originate, decode and copy laser and dimple keys.
Controlled by a removable 10” (254 mm) touch-screen tablet, the Futura Pro One key machine guides the user step-by-step in all key cutting operations; for example, in selecting the make, model and year for automotive keys, selecting the cutter, clamp, etc.
Expand capabilities including tubular and Tibbe® style with optional accessories
Features:
- Decode and Copy by electrical Contact
- Powerful cutter motors - 12,100 rpm
- Tablet and electronic board delivers fast start up and response times
- Automatic Calibration of Z axis
- Guided, step by step updating procedure via tablet, SRS/USB, or ethernet
- 2 USB Ports; one used for charging the tablet and the other used for tethering, updating via USB stick or importing code tables
- USB pen for updates included
- Flexible cutting station with interchangeable jaws for various types of laser and dimple keys
- Dovetail shape for quick installation of clamps, adapters and accessories
- Futura and Futura Pro accessories are compatiable with Futura Pro One
- Stainless steel screws resist wear
Smart Search for automatic Key Cards:
- Simply input the first letters and the software will prompt the make and/or model
- Easy and fast search for a vechicle key cutting code using the card search shortcut function
PROCESS STATUS INDICATION
Process Status Indication (Led lights indicate the process status): | |||
---|---|---|---|
White=Ready | Yellow=Cutting Cycle | Green=Cutting Cycle Compete | Red=Stop, indcates a fault (i.e. Safety shield is open) |
Standard Parts / Accessories | |
---|---|
Cutter: |
Laser: 01LW D747838ZB Dimple: 01D D742867ZB |
Jaw: |
Laser/Dimple:
|
Tracer: |
Laser/Dimple:
|
USB Pen: | D947837ZR |
Technical Data: | |
---|---|
Motor: | 12V dc |
Power Supply: | 90/264V – 50/60 Hz |
Movements: | 3 axes (special bushings) driven by step motor on rectified roller guides |
Carriage Runs: |
Axis X 1.18” (30 mm) Axis Y 1.97” (50 mm) Axis Z 1.06” (27 mm) |
Software Interface: | Instacode/Kreate-A-Key |
Dimensions: |
Width: 12.52” (318 mm) Depth: 16.26” (413 mm) Height: 20.47” (522 mm) with tablet, 13.38” (340 mm) without tablet |
Weight: | 42 lbs. (19 kg) |
Warranty: | 2 years (machine and tablet) |
Compare All The Futura Series
Capabilities | ![]() |
![]() Futura PRO One |
Futura Edge |
Futura Auto |
---|---|---|---|---|
Cutting stations |
2 |
1 |
1 |
1 |
Edge - Copy by Original |
|
|
|
|
Edge - Decode and Copy |
|
|
|
|
Edge - Originate |
|
|
|
|
Edge - Cut by Code |
|
|
|
|
Laser - Decode and Copy |
|
|
|
|
Laser - Originate |
|
|
|
|
Laser - Cut by Code |
|
|
|
|
Dimple - Decode and Copy |
|
|
|
|
Dimple - Originate |
|
|
|
|
Dimple - Cut by Code |
|
|
|
|
Tibbe - Decode and Copy |
|
|
|
|
Tibbe - Originate |
|
|
|
|
Tibbe - Cut by Code |
|
|
|
|
Tubular - Decode and Copy |
|
|
|
|
Tubular - Originate |
|
|
|
|
Tubular - Cut by Code |
|
|
|
|
Database Automotive |
|
|
|
|
Database Residential / Commercial |
|
|
|
|
Engraving |
|
|
|
|
KAK/Instacode Communication |
|
|
|
|
Codemaker (Edge/Dimple) |
|
DIMPLE ONLY |
EDGE-CUT ONLY |
|
