Precision Cutting Power with the Ilco Speed 044 Key Machine
The Ilco Speed 044, also known as the Ilco 044 semi automatic key machine, is a professional-grade ilco key machine engineered for locksmiths who demand accuracy, efficiency, and durability in their daily operations. This advanced silca key machine often referred to as the silca speed 044; features a semi-automatic carriage movement that ensures smooth, consistent cutting with minimal operator effort, making it ideal for duplicating a wide range of standard cylinder, automotive, and commercial keys. The ilco 044 key machine is built with a robust, vibration-resistant structure, delivering precise results while maintaining long-term reliability in high-volume environments. Its ergonomic design, integrated safety features, and intuitive controls allow both beginner and experienced locksmiths to achieve clean, accurate cuts quickly. Whether you call it the ilco speed 044 or the trusted ilco 044 key machine, this machine stands out as a dependable solution for professional key duplication needs.

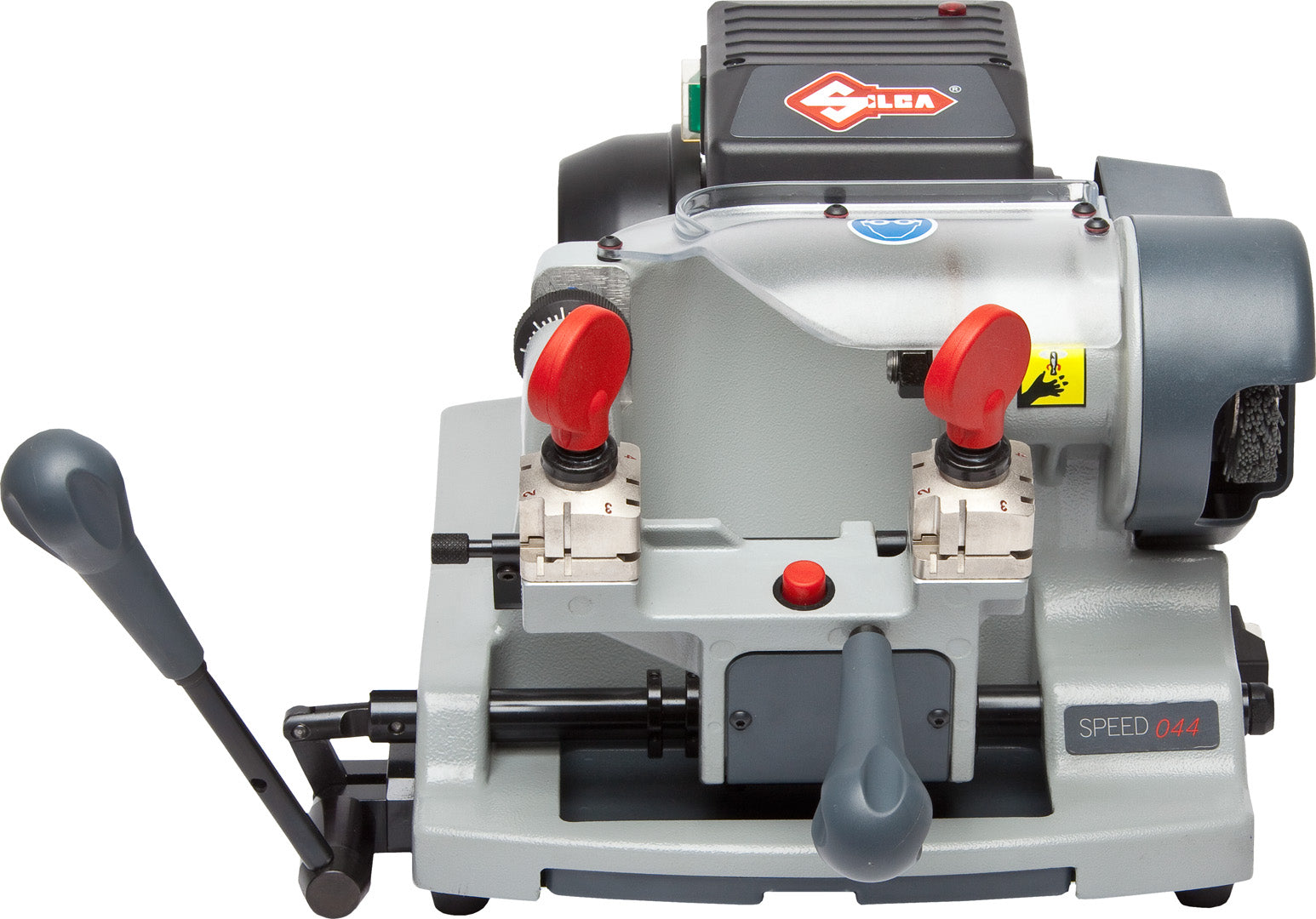

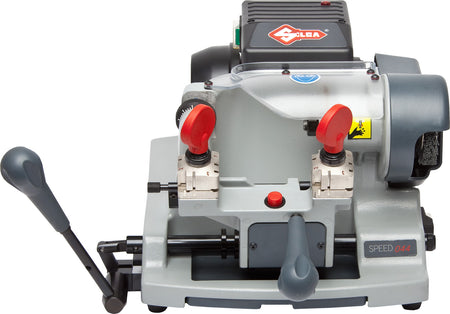

The Silca Speed 044 is a key cutting machine designed for duplicating typical automotive, residential and commercial keys including those with large bows or long blades such as cruciform keys, flip style keys and automotive keys with remote heads (IRKE).
- The spring loaded carriage is engaged by the press of a button and applies a consistent cutting pressure while in automatic mode
- Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
- Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys.
- Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
- Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
- TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
- Nylon deburring brush
- Electro-magnetic “main” safety switch with a separate cutter motor switch for easy access.
- Large transparent cutter safety shield contains chips and provides a storage area for accessories
- Large drawer-type swarf (chip) tray under the carriage for easy access
- Mounting bracket included for securing the machine to counter
- Two year warranty
The Speed 04X Series mechanical key duplicators are engineered and manufactured with a new look and many new improved features over the existing 04X series of machines. These new models will replace the current Performance HD Series of machines (040HD, 044HD, 045HD and 046HD)
SPEED 044 Semi-Automatic
Operation Features a spring loaded carriage that is easily engaged by the press of a button on top of the carriage. This action applies consistent cutting pressure during the entire operation.
Technical Data
| Power Supply: | 120V-60Hz |
| Maximum absorbed power: | 2.8 Amp, 200 Watt |
| Cutter motor: | single phase and speed |
| Movements: | by ball joint on rectified carriage |
| Tool Speed: | 1350 rpm |
| Carriage Runs: | 1.65" (42mm) |
Standard Parts
| Cutter: |
TiN Coated
|
| Brush: |
Nylon, 5/8” (15.87 mm) bristles
|
Dimensions:
| Width: | 22.8" (580 mm) |
| Depth: | 18.1" (460 mm) |
| Height: | 9.8” (250 mm) |
| Weight: | 31 lbs.(14 kg) |
Modern, open styling
The open styling of the Silca Speed 044 key cutting machines allows for ease of cleaning. A large drawer-type swarf tray is located under the carriage to capture key shavings. Mounting bracket included for ease in securing the machine to a work bench.
Four-sided jaws mean flexibility of use
The Silca Speed 044's four-sided jaws easily clamp virtually all edge-cut and flat-style keys present on the market. These jaws can be quickly and smoothly rotated by simply loosening the knob and rotating the jaw into the proper position. The 3-1/2" (88.9 mm) spacing between clamps accommodates large bow (head) and long blade keys including the flip style automotive and cruciform keys. Jaws are nickel plated for extended life.
Wear resistant cutter
The large cutter is TiN (Titanium Nitride) coated for long life and oxidation resistance
Finish keys perfectly
Nylon, soft-touch deburring brush bristles are perfect for the finishing of cut keys.
Optimized calibration and precise gauging
A depth tracer system with micro-adjustment feature provides fast, precise calibration in increments of .00098" (.025mm). The standard tracer works on all edge cut keys, including Sargent®.
Operator Safety
Electro-magnetic “main” safety switch (machine must be manually re-started after a power interruption). A separate cutter motor switch located on the side of the motor provides safe and easy access.
Belt/brush are covered and the large transparent cutter shield provides safety as well as storage for accessories.
2-Year Warranty
Made in India
FAQs
What makes the Ilco Speed 044 key machine suitable for locksmiths?
The Ilco Speed 044 key machine offers semi-automatic operation, ensuring consistent precision and reduced manual effort during key duplication. Its durable construction and user-friendly design make it suitable for both beginner and professional locksmiths handling residential, commercial, and automotive keys daily.
Is the Ilco 044 semi automatic key machine easy to use for beginners?
Yes, the Ilco 044 semi automatic key machine is designed with simplicity in mind. Its intuitive controls, smooth carriage movement, and ergonomic layout help beginners quickly learn key duplication while still offering advanced performance features professionals expect from a reliable silca key machine.
What types of keys can the Silca Speed 044 duplicate?
The Silca Speed 044 can duplicate a wide variety of keys, including residential, commercial, and certain automotive keys. Its versatility makes it a practical choice for locksmiths who need a dependable ilco key machine capable of handling diverse key cutting tasks efficiently.
How durable is the Ilco 044 key machine for long-term use?
The Ilco 044 key machine is built with high-quality materials and a sturdy frame that minimizes vibration during operation. This durability ensures consistent cutting accuracy and makes it a long-lasting investment for locksmith shops with high-volume key duplication needs.
Why choose the Ilco Speed 044 over other key cutting machines?
The Ilco Speed 044 stands out due to its semi-automatic functionality, precision engineering, and ease of use. Compared to manual machines, it reduces effort while improving consistency, making it a reliable choice for locksmiths seeking efficiency and professional-quality results.
