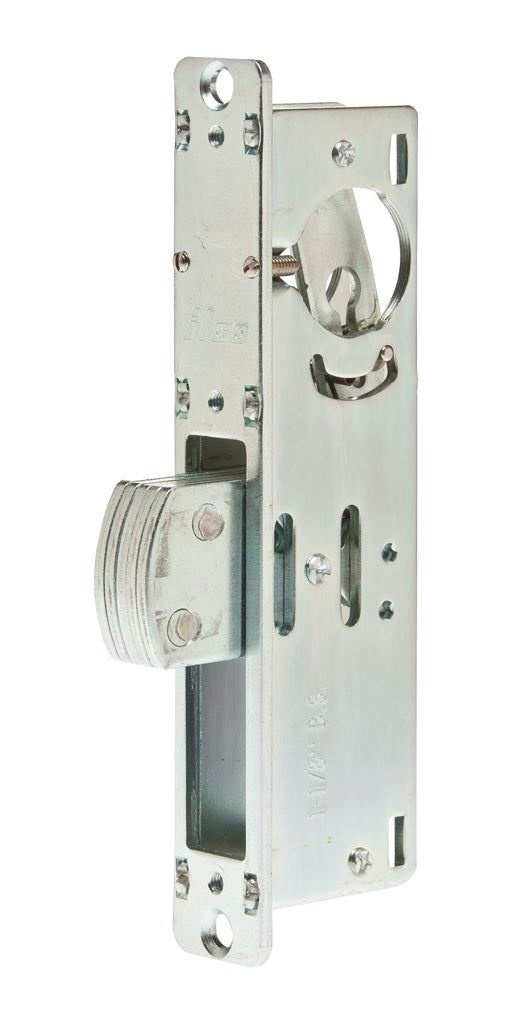

185 Series Straight Deadbolt
360° turn of the key or thumbturn retracts the bolt. The bolt provides maximum security on single leaf doors.
Overview
Available with straight bolt (185) and hook bolt (HB185).
- Accepts standard 1-5⁄32” (29.36 mm) diameter mortise cylinder or thumbturn
- Aluminum faceplate measures 1”x 6-7/8” (25.4 mm x 174.63 mm) / ANSI sized 1-1⁄4” x 8” (31.78 mm x 203.2 mm)
- Faceplates are Flat

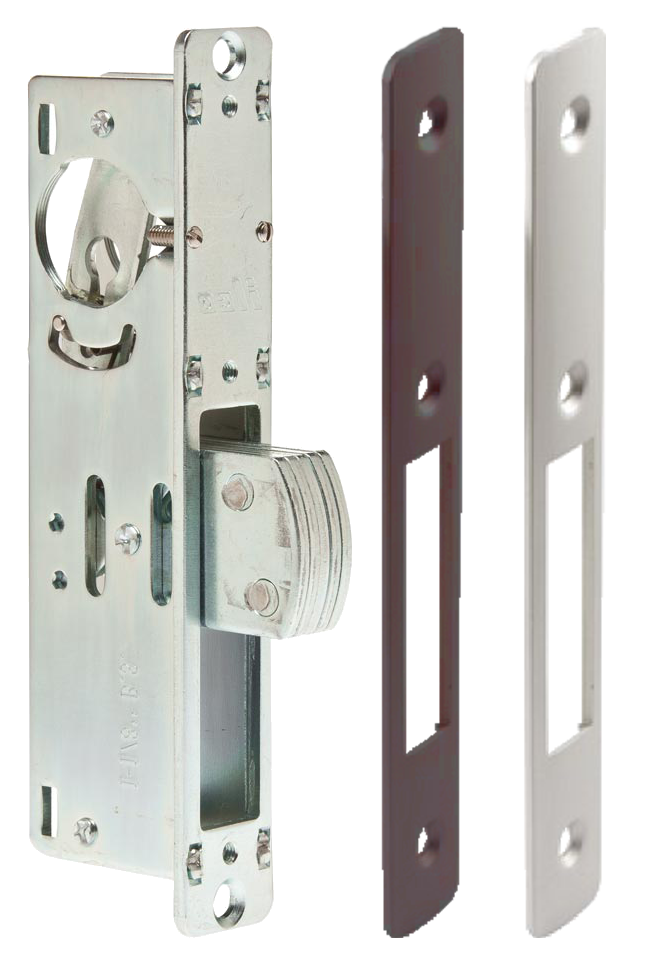

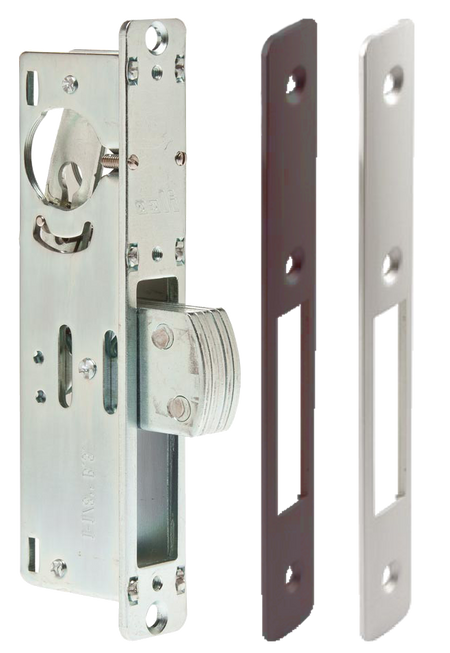

- Available with two faceplates
- Cycle testing exceeds ANSI Grade 1 standards
| Product | 185-F-3NH-SINGLE-628/313-PC |
|---|---|
| Model Number | 185 Series Deadbolt |
| Face-Plate | Flat |
| Backset | 1-1/8" (28.58mm) |
| Bolt | 5/8”W x 1-3/8" x 2-7/8”L (15.88 mm x 34.925 mm x 73.03 mm) |
| Throw | 1-3/8" (34.9 mm) |
| Case | Steel with corrosion resistant plating |
| Handling | Non Handle |
| Packout | Single Pack |
| Finish | Aluminum and Dark Bronze |
