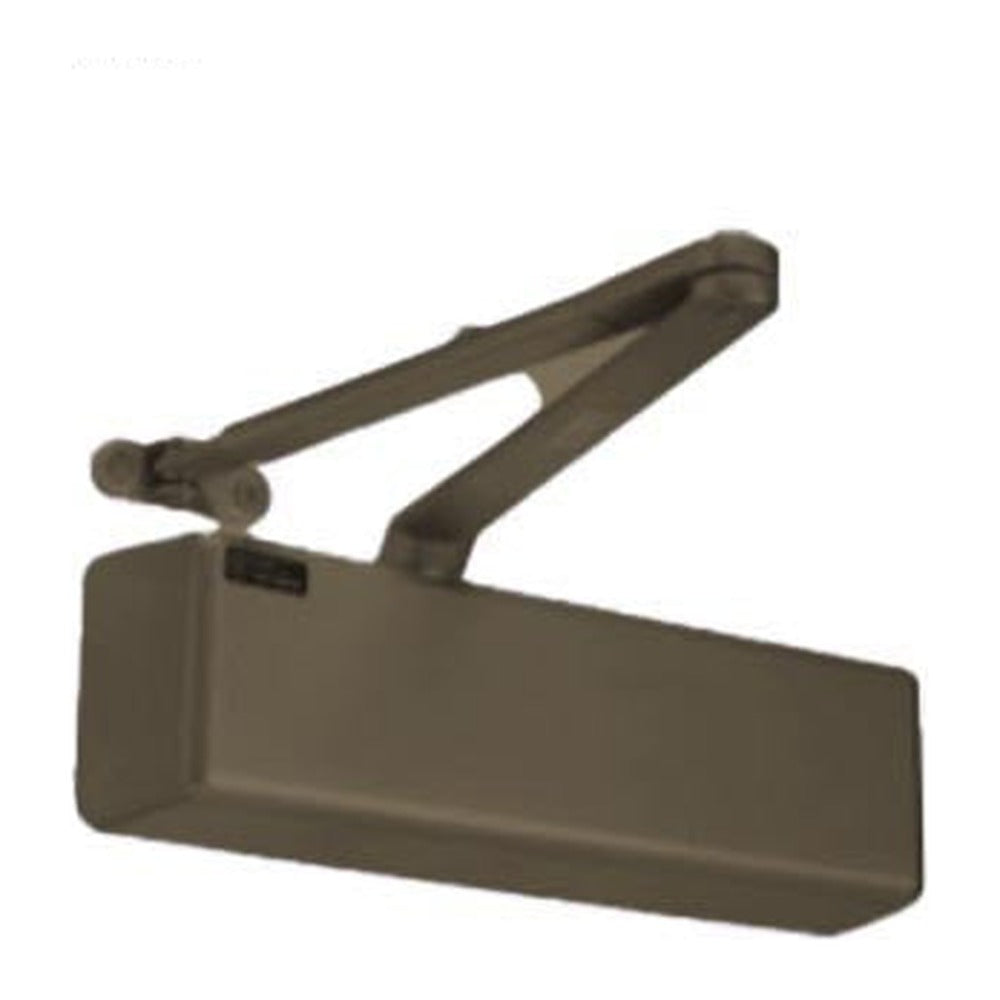

Tell Pro 900 Series Grade 1 Heavy Duty Door Closer - Adjustable 1-6, Full Cover - Duro Finish

Tell's 900 Series part 15916 is the cast steel member of their Grade 1 closer line, finished in Duro with a full cover. Spring power adjusts from size 1 to 6 for doors that see the most traffic.

It is non-handed for regular arm, top jamb or parallel arm mounting. Tell lists parallel arm bracket, sex nuts and backcheck as standard, and thru-bolts are packed with the closer.

Replacing an LCN 4040? Tell uses the same hole pattern. Optional arms sold separately: friction hold-open (DC100138 aluminum / DC100139 Duro) and heavy duty dead-stop hold-open (DC100181 aluminum / DC100190 Duro).

Fire doors: Tell lists the closer UL/ULC for fire doors up to 3 hours and rates it to 2,000,000 cycles under ANSI A156.4 Grade 1. Hold-open arms are not for use on fire-rated doors. Meets ADA per Tell.

Cross-reference: Tell lists the 900 Series as equal to Cal-Royal 441; Design 416; Dorma 8916; LCN 4040; Norton 7500; Yale 4400; Sargent 281; Hager 5100.

Specifications
