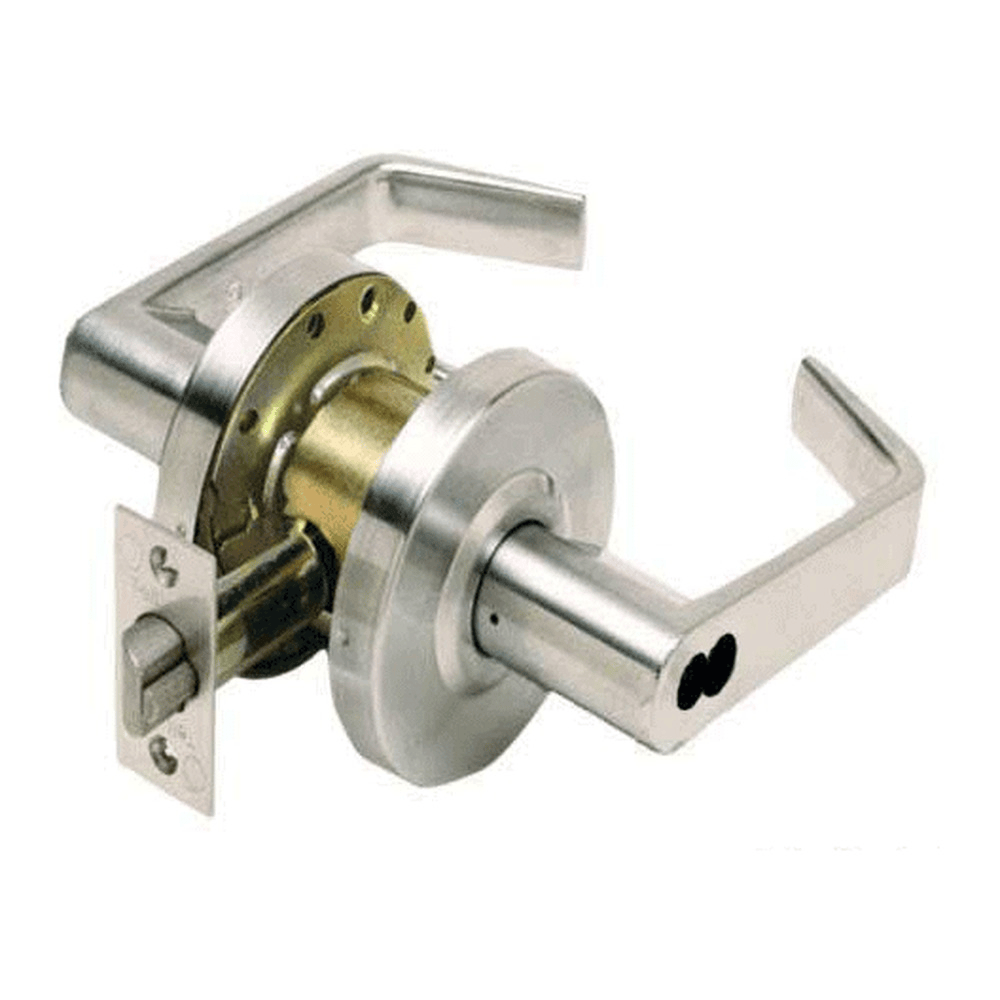

Tell Pro LC2600 Series Grade 2 Cortland Classroom Lever Lock SFIC - US26D Finish
Key-controlled from the hallway side with nothing on the inside for occupants to fiddle with. Tell's LC2684 CTL IC is the classroom function of the LC2600 Cortland family: an ANSI Grade 2 cylindrical lever lock in US26D satin chrome, cycle-tested to 400,000 operations and made to drop into a standard 161 prep.
How it works: Locking and unlocking happens with a key in the outside lever only. There is no inside button or turn, and the inside lever always lets people out.
This is the IC version, prepped for a small format interchangeable core (SFIC). The core is not included, so you can drop in a 6- or 7-pin SFIC core from your existing system.
Good fit for classrooms, training and conference rooms, labs, shared workrooms. Cross-reference: Tell lists the LC2600 Series as equal to Cal-Royal SL, CSL, XP & ALC; Falcon W500 series; Hager 3500 series; Corbin CL3800 series; Sargent 65 series; Schlage AL series; Yale 4600LN series.
Specifications
| Attribute | Details |
|---|---|
| Brand / Series | Tell Manufacturing LC2600 Series, Cortland (CTL) lever |
| Tell Item # / Part # | CL102262 / LC2684 CTL IC |
| Function | Classroom (IC) |
| Finish | US26D (BHMA 626) Satin Chrome |
| Grade | ANSI/BHMA A156.2, Grade 2 (400,000 cycles) |
| Fire Rating | Series listed UL/ULC for 3-hour fire doors (series-level listing; confirm the label for your opening with your AHJ) |
| Accessibility | ADA (ANSI A117.1) |
| Handing | Non-handed |
| Backset | 2-3/4" (2-3/8" available on request from Tell) |
| Latch | 1/2" stainless steel throw, 1-1/8" x 2-1/4" square corner faceplate |
| Strike | ASA 1-1/4" x 4-7/8" |
| Rose | 3-1/4" diameter |
| Door Thickness | 1-3/8" to 2" |
| Door Prep | 161 prep: 2-1/8" bore, 1" edge bore |
| Thru-Bolts | Removable, standard |
| Cylinder | SFIC prep, core not included |
| Warranty | Tell lifetime limited |
