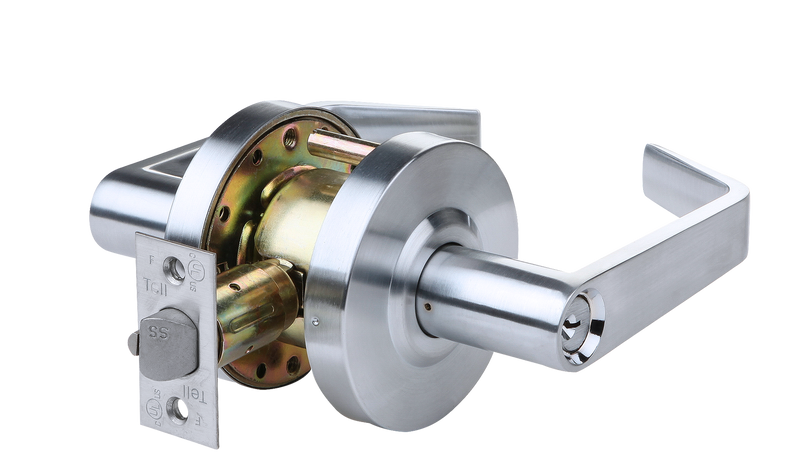

Tell Pro LC2600 Series Grade 2 Cortland Clutch Entrance Lever Lock - US26D Finish
Front office, suite door or apartment entry, this is the everyday keyed lever. Tell's LC2681 CTL FW is the clutch entrance function of the LC2600 Cortland family: an ANSI Grade 2 cylindrical lever lock in US26D satin chrome, cycle-tested to 400,000 operations and made to drop into a standard 161 prep.
How it works: Push the button on the inside and the outside lever locks; a key from the hallway side unlocks it. The inside lever opens the door at all times, so nobody gets locked in.
This FW version adds a freewheeling clutch. When the outside lever is locked it turns freely instead of fighting back, which helps protect the latch and internal parts from someone forcing or hanging on the lever. The standard cylinder is a 6-pin solid brass Schlage C keyway (SCC) that can be pinned down to 5-pin, so it can be rekeyed into an existing C-keyway system. Tell packs two nickel silver keys per cylinder.
Good fit for suite entries, reception and front offices, apartment and condo unit doors, small-business entrances. Cross-reference: Tell lists the LC2600 Series as equal to Cal-Royal SL, CSL, XP & ALC; Falcon W500 series; Hager 3500 series; Corbin CL3800 series; Sargent 65 series; Schlage AL series; Yale 4600LN series.
Specifications
| Attribute | Details |
|---|---|
| Brand / Series | Tell Manufacturing LC2600 Series, Cortland (CTL) lever |
| Tell Item # / Part # | CL101918 / LC2681 CTL FW |
| Function | Clutch Entrance |
| Finish | US26D (BHMA 626) Satin Chrome |
| Grade | ANSI/BHMA A156.2, Grade 2 (400,000 cycles) |
| Fire Rating | Series listed UL/ULC for 3-hour fire doors (series-level listing; confirm the label for your opening with your AHJ) |
| Accessibility | ADA (ANSI A117.1) |
| Handing | Non-handed |
| Backset | 2-3/4" (2-3/8" available on request from Tell) |
| Latch | 1/2" stainless steel throw, 1-1/8" x 2-1/4" square corner faceplate |
| Strike | ASA 1-1/4" x 4-7/8" |
| Rose | 3-1/4" diameter |
| Door Thickness | 1-3/8" to 2" |
| Door Prep | 161 prep: 2-1/8" bore, 1" edge bore |
| Thru-Bolts | Removable, standard |
| Cylinder | Schlage C keyway, 6-pin solid brass, keyed different |
| Warranty | Tell lifetime limited |
