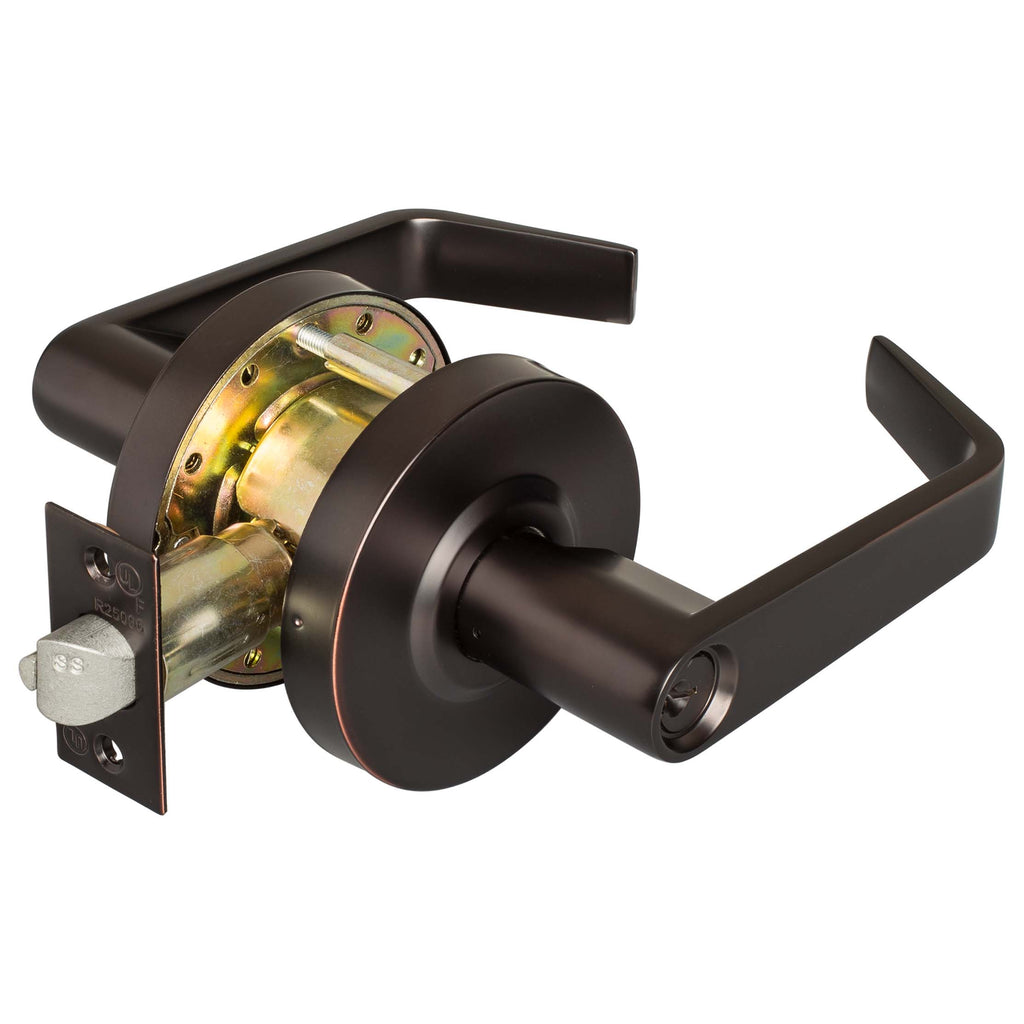

Tell Pro LC2600 Series Grade 2 Cortland Entrance Lever Lock - US10B Finish
Front office, suite door or apartment entry, this is the everyday keyed lever. Tell's LC2681 CTL is the entrance function of the LC2600 Cortland family: an ANSI Grade 2 cylindrical lever lock in US10B oil-rubbed bronze, cycle-tested to 400,000 operations and made to drop into a standard 161 prep.
How it works: Push the button on the inside and the outside lever locks; a key from the hallway side unlocks it. The inside lever opens the door at all times, so nobody gets locked in.
The standard cylinder is a 6-pin solid brass Schlage C keyway (SCC) that can be pinned down to 5-pin, so it can be rekeyed into an existing C-keyway system. Tell packs two nickel silver keys per cylinder.
Good fit for suite entries, reception and front offices, apartment and condo unit doors, small-business entrances. Cross-reference: Tell lists the LC2600 Series as equal to Cal-Royal SL, CSL, XP & ALC; Falcon W500 series; Hager 3500 series; Corbin CL3800 series; Sargent 65 series; Schlage AL series; Yale 4600LN series.
Specifications
| Attribute | Details |
|---|---|
| Brand / Series | Tell Manufacturing LC2600 Series, Cortland (CTL) lever |
| Tell Item # / Part # | CL102066 / LC2681 CTL |
| Function | Entrance |
| Finish | US10B (BHMA 613) Oil-Rubbed Bronze |
| Grade | ANSI/BHMA A156.2, Grade 2 (400,000 cycles) |
| Fire Rating | Series listed UL/ULC for 3-hour fire doors (series-level listing; confirm the label for your opening with your AHJ) |
| Accessibility | ADA (ANSI A117.1) |
| Handing | Non-handed |
| Backset | 2-3/4" (2-3/8" available on request from Tell) |
| Latch | 1/2" stainless steel throw, 1-1/8" x 2-1/4" square corner faceplate |
| Strike | ASA 1-1/4" x 4-7/8" |
| Rose | 3-1/4" diameter |
| Door Thickness | 1-3/8" to 2" |
| Door Prep | 161 prep: 2-1/8" bore, 1" edge bore |
| Thru-Bolts | Removable, standard |
| Cylinder | Schlage C keyway, 6-pin solid brass, keyed different |
| Warranty | Tell lifetime limited |
