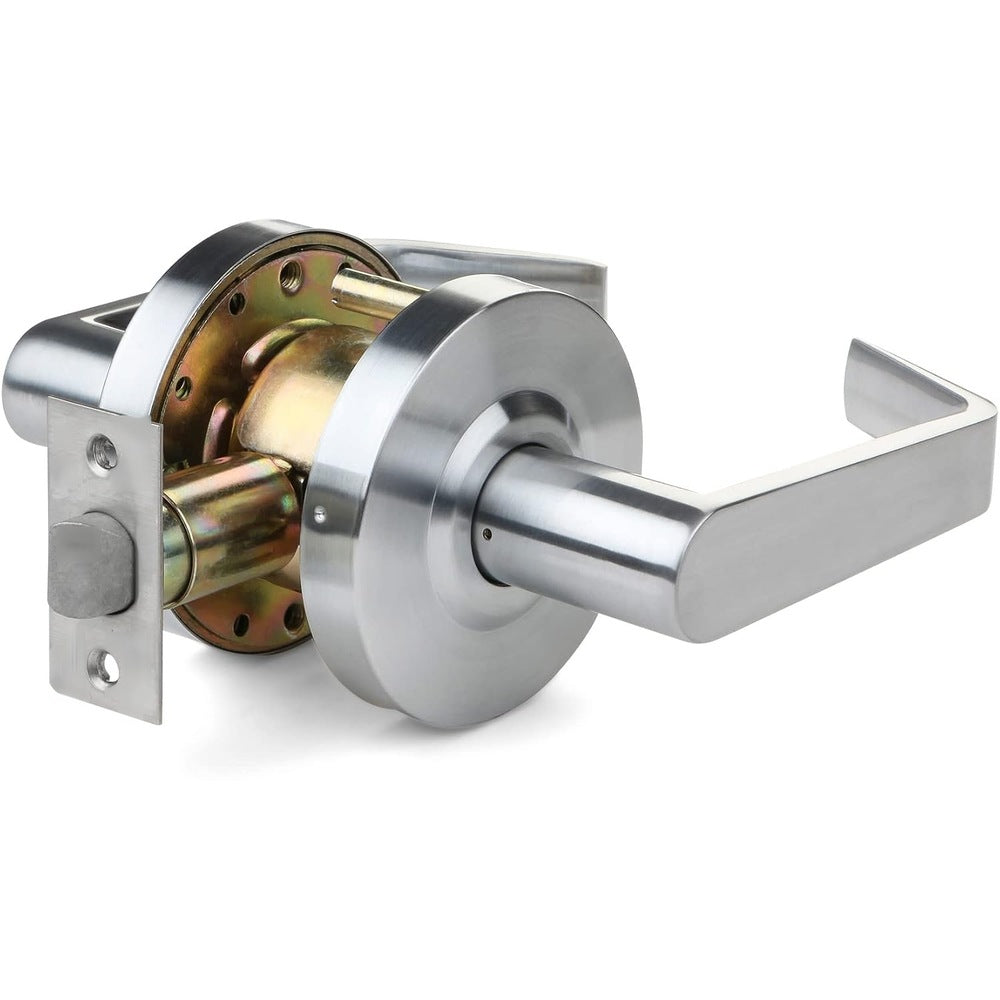

Tell Pro LC2600 Series Grade 2 Cortland Exit Lever Lock - US26D Finish
Exit-only lever: out from the inside, no entry from outside. Tell's LC2680 CTL is the exit function of the LC2600 Cortland family: an ANSI Grade 2 cylindrical lever lock in US26D satin chrome, cycle-tested to 400,000 operations and made to drop into a standard 161 prep.
How it works: The inside lever always pulls the latch back for exit. The outside lever is rigid all the time and there is no cylinder, so the door cannot be opened from outside with the lever.
Good fit for exit-only doors, back-of-house doors and stair doors that should let people out but not back in. Cross-reference: Tell lists the LC2600 Series as equal to Cal-Royal SL, CSL, XP & ALC; Falcon W500 series; Hager 3500 series; Corbin CL3800 series; Sargent 65 series; Schlage AL series; Yale 4600LN series.
Specifications
| Attribute | Details |
|---|---|
| Brand / Series | Tell Manufacturing LC2600 Series, Cortland (CTL) lever |
| Tell Item # / Part # | CL102600 / LC2680 CTL |
| Function | Exit |
| Finish | US26D (BHMA 626) Satin Chrome |
| Grade | ANSI/BHMA A156.2, Grade 2 (400,000 cycles) |
| Fire Rating | Series listed UL/ULC for 3-hour fire doors (series-level listing; confirm the label for your opening with your AHJ) |
| Accessibility | ADA (ANSI A117.1) |
| Handing | Non-handed |
| Backset | 2-3/4" (2-3/8" available on request from Tell) |
| Latch | 1/2" stainless steel throw, 1-1/8" x 2-1/4" square corner faceplate |
| Strike | ASA 1-1/4" x 4-7/8" |
| Rose | 3-1/4" diameter |
| Door Thickness | 1-3/8" to 2" |
| Door Prep | 161 prep: 2-1/8" bore, 1" edge bore |
| Thru-Bolts | Removable, standard |
| Cylinder | None (non-keyed) |
| Warranty | Tell lifetime limited |
