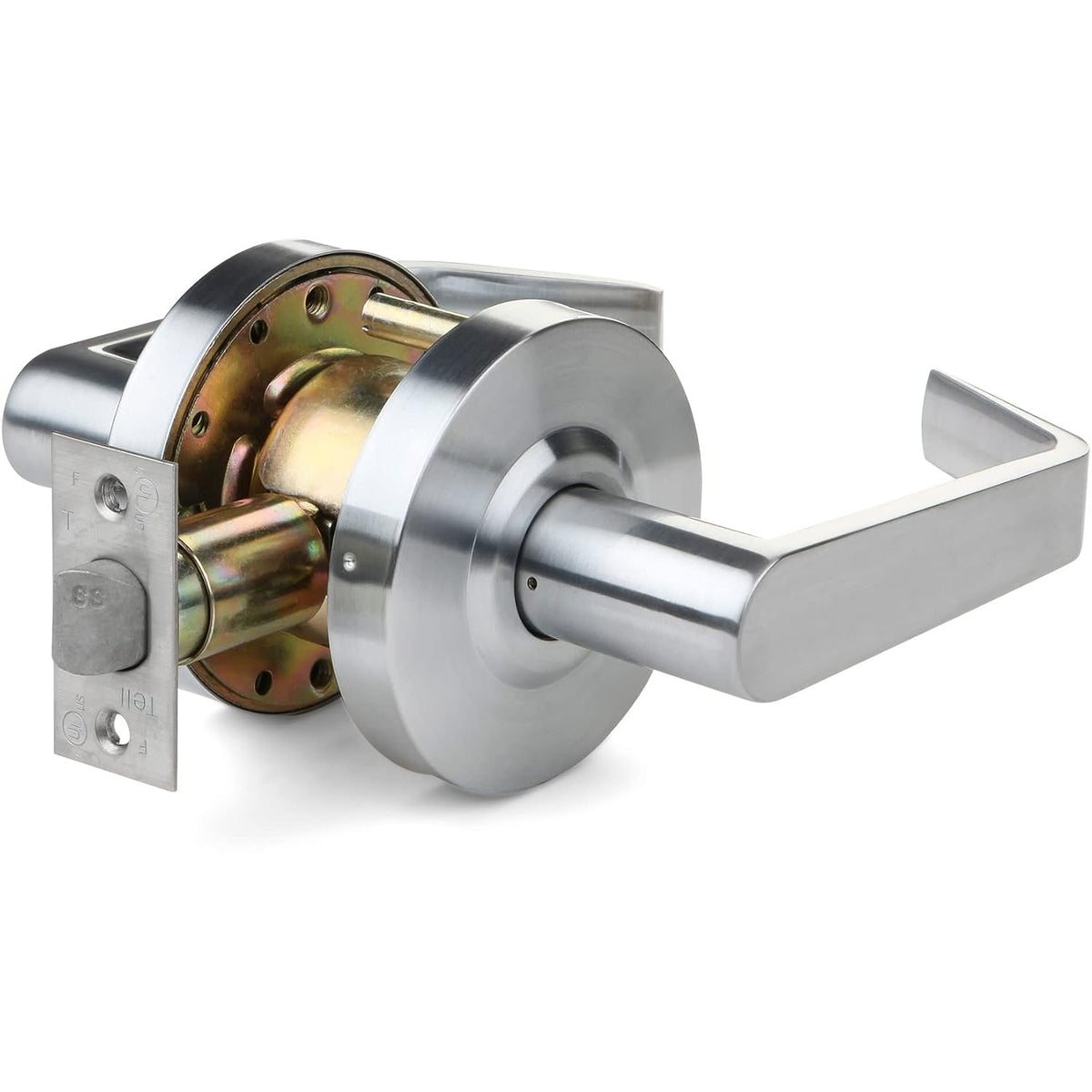

Tell Pro LC2600 Series Grade 2 Cortland Passage Lever Lock - US26D Finish
Regular price
$59.53
For interior doors that must latch closed but never lock. Tell's LC2675 CTL is the passage function of the LC2600 Cortland family: an ANSI Grade 2 cylindrical lever lock in US26D satin chrome, cycle-tested to 400,000 operations and made to drop into a standard 161 prep.
How it works: No lock at all: both levers turn freely and pull the latch back whenever you use them. The door simply latches shut.
Good fit for corridors, closets, break rooms, lobbies and stair or vestibule doors that should not lock. Cross-reference: Tell lists the LC2600 Series as equal to Cal-Royal SL, CSL, XP & ALC; Falcon W500 series; Hager 3500 series; Corbin CL3800 series; Sargent 65 series; Schlage AL series; Yale 4600LN series.
Specifications
| Attribute | Details |
|---|---|
| Brand / Series | Tell Manufacturing LC2600 Series, Cortland (CTL) lever |
| Tell Item # / Part # | CL100985 / LC2675 CTL |
| Function | Passage |
| Finish | US26D (BHMA 626) Satin Chrome |
| Grade | ANSI/BHMA A156.2, Grade 2 (400,000 cycles) |
| Fire Rating | Series listed UL/ULC for 3-hour fire doors (series-level listing; confirm the label for your opening with your AHJ) |
| Accessibility | ADA (ANSI A117.1) |
| Handing | Non-handed |
| Backset | 2-3/4" (2-3/8" available on request from Tell) |
| Latch | 1/2" stainless steel throw, 1-1/8" x 2-1/4" square corner faceplate |
| Strike | ASA 1-1/4" x 4-7/8" |
| Rose | 3-1/4" diameter |
| Door Thickness | 1-3/8" to 2" |
| Door Prep | 161 prep: 2-1/8" bore, 1" edge bore |
| Thru-Bolts | Removable, standard |
| Cylinder | None (non-keyed) |
| Warranty | Tell lifetime limited |
