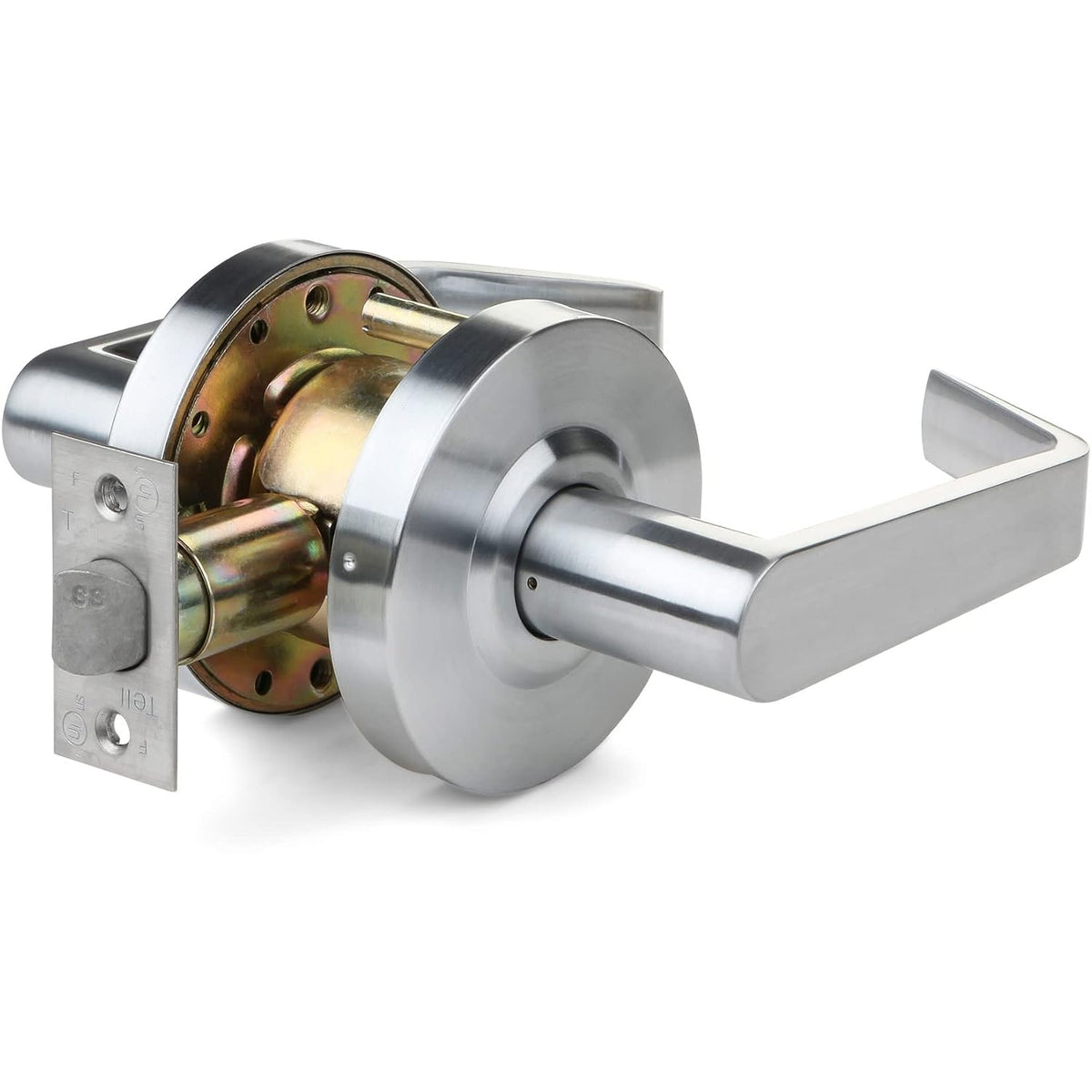

Tell Pro LC2600 Series Grade 2 Cortland Privacy Lever Lock - US26D Finish
A non-keyed privacy lever made for commercial traffic. Tell's LC2676 CTL is the privacy function of the LC2600 Cortland family: an ANSI Grade 2 cylindrical lever lock in US26D satin chrome, cycle-tested to 400,000 operations and made to drop into a standard 161 prep.
How it works: Pressing the inside push-button locks the outside lever. It releases when the inside lever is turned or the door is closed, and staff can open it from the outside with the emergency release.
Good fit for restrooms, single-occupant bathrooms, lactation and wellness rooms, bedrooms in multifamily units. Cross-reference: Tell lists the LC2600 Series as equal to Cal-Royal SL, CSL, XP & ALC; Falcon W500 series; Hager 3500 series; Corbin CL3800 series; Sargent 65 series; Schlage AL series; Yale 4600LN series.
Specifications
| Attribute | Details |
|---|---|
| Brand / Series | Tell Manufacturing LC2600 Series, Cortland (CTL) lever |
| Tell Item # / Part # | CL100984 / LC2676 CTL |
| Function | Privacy |
| Finish | US26D (BHMA 626) Satin Chrome |
| Grade | ANSI/BHMA A156.2, Grade 2 (400,000 cycles) |
| Fire Rating | Series listed UL/ULC for 3-hour fire doors (series-level listing; confirm the label for your opening with your AHJ) |
| Accessibility | ADA (ANSI A117.1) |
| Handing | Non-handed |
| Backset | 2-3/4" (2-3/8" available on request from Tell) |
| Latch | 1/2" stainless steel throw, 1-1/8" x 2-1/4" square corner faceplate |
| Strike | ASA 1-1/4" x 4-7/8" |
| Rose | 3-1/4" diameter |
| Door Thickness | 1-3/8" to 2" |
| Door Prep | 161 prep: 2-1/8" bore, 1" edge bore |
| Thru-Bolts | Removable, standard |
| Cylinder | None (non-keyed) |
| Warranty | Tell lifetime limited |
