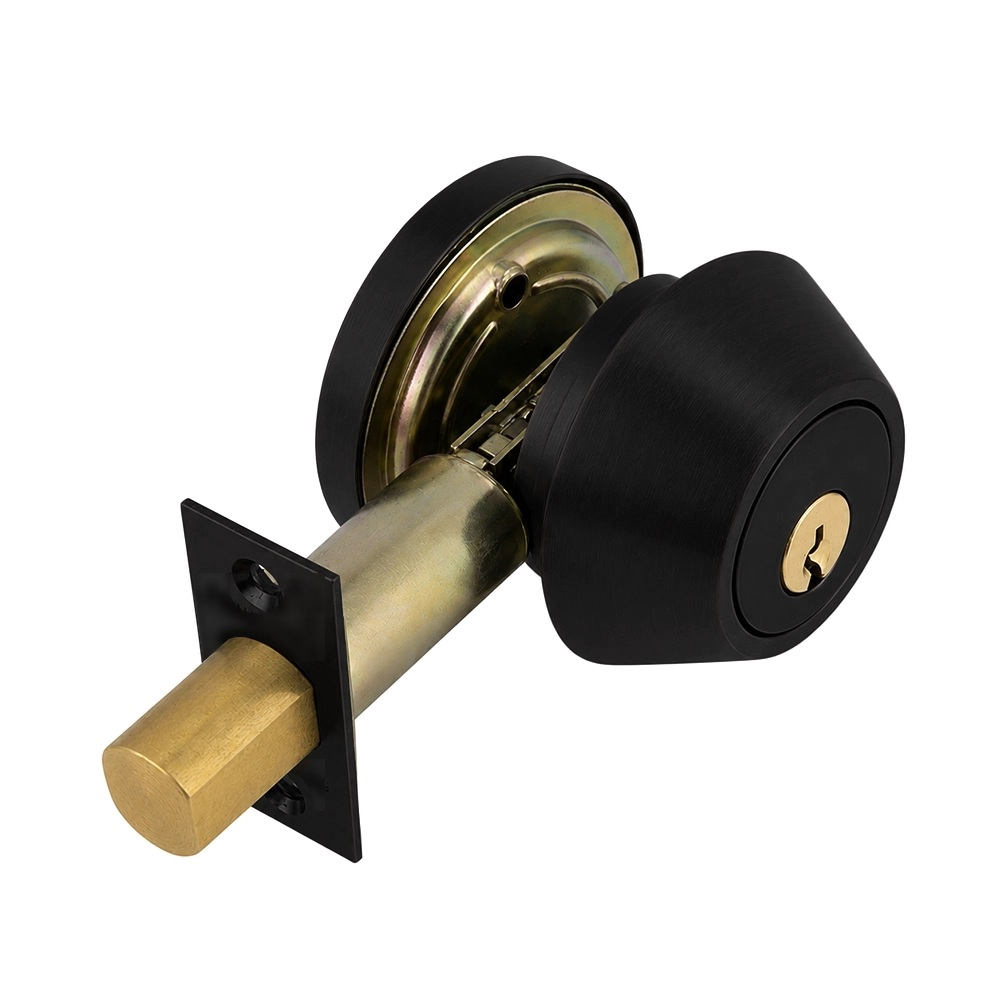

Tell Pro DB2000 Series Grade 2 Single Cylinder Deadbolt - US10B Finish
Tell's DB2051 gives a light-commercial door a key on the outside and a thumbturn on the inside. It belongs to the DB2000 Series, an ANSI A156.5 Grade 2 tubular deadbolt cycle-tested to 150,000 operations, here in US10B oil-rubbed bronze.
The bolt is the selling point: a 1" stainless steel throw with an internal roller bar that turns against a hacksaw or reciprocating-saw blade instead of letting it bite.
The latch adjusts between 2-3/8" and 2-3/4" backset, and the 6-pin solid brass Schlage C keyway cylinder can be pinned to 5-pin and rekeyed to match. Two nickel silver keys come with each cylinder.
Cross-reference: Tell lists the DB2000 Series as equal to Schlage B160 / BC160; Hager 3200; Cal-Royal T300; Corbin DL2200; Falcon D200; Arrow DBX Series; Sargent 460; Design Hardware D2; PDQ KV & KM series; Yale D200 series.
Specifications
| Attribute | Details |
|---|---|
| Brand / Series | Tell Manufacturing DB2000 Series |
| Tell Item # / Part # | CL100582 / DB2051 |
| Function | Single cylinder |
| Finish | US10B (BHMA 613) Oil-Rubbed Bronze |
| Grade | ANSI/BHMA A156.5, Grade 2 (150,000 cycles) |
| Chassis | Tubular, steel |
| Bolt | 1" stainless steel throw with roller bar |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Door Thickness | 1-3/8" to 1-3/4" |
| Door Prep | 161 prep: 2-1/8" bore, 1" bolt hole |
| Cylinder | Schlage C keyway, 6-pin solid brass, two nickel silver keys |
| Warranty | Tell lifetime limited |
