| Â | Â | Â |
 Diameter |
 Thickness |
 Hole Diameter |
 Profile / Angle |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item No. | Type | Material | Inch | mm | Inch | mm | Inch | mm | A° | B° | F In. | mm |

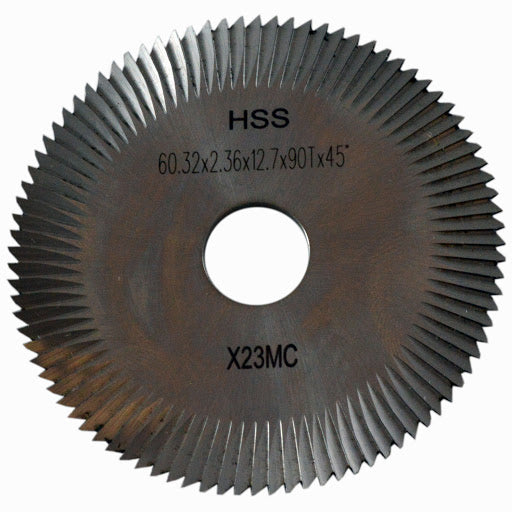

| Â X23MC | Â Milling | Â H.S.S. | Â 2.375 | Â 60.32 | Â .104 | Â 2.64 | Â .5 | Â 12.7 | Â 0 | Â 45 | Â .081F | Â 2.057 |
RAISE® High Quality Cutters
This cutter can be used on the following machines:
- Ilco 023, 025, 045
- DL 143M, 145, 145M, 148M
- Taylor 143MT, 145MT
- HPC 9160MC, 9170MC, 9180MC
This part is equivalent to other manufacturers part numbers, including:
- 2277
- BC0089XXXX
- CU12
- CW-23MC
- P-X23MC
